Product Details:
|
| Model: | C30 C50 C70 C90 C100 | Machine Connector: | 12Pin |
|---|---|---|---|
| Patient End: | Clip | Length: | 3.5M |
| Cable Diameter: | 5.0+2.6 Cable | Application: | Comen 12Pin Patient Monitor |
1.Description:Comen C21 C30 C50 C70 C90 C100 Compatible One piece 5 lead ECG Cable
2.Compatibility:
| Manufacturer | Model |
|---|---|
| Comen |
C100, C100A, C21, C30, C50, C70, C90, NC10, NC12, NC19, NC3, NC5, NC8
|
| Medexcel |
MD50
|
3.Specification
| Connector | 12Pin |
| Cable material | medical TPU |
| Cable diameter | 5.0 mm +2.6mm Cable |
| Patient end | Clip |
| Latex Free | Yes |
| Number of Leadwires | 5 lead |
| Standard | AHA |
| Certificate | ISO13485,CE |
| Package | 1 pc in bag |
| Warranty | 6 month for free |
| Category | ECG |
| Instrument connector | 12pin male |
| Trunk cable length | 250cm |
| Patient leadwires | 100cm |
| Patient end termination | IEC: 3-lead/5-lead, snap/clip |
| AHA: 3-lead/5-lead, snap/clip | |
| Resistor | 1K Resistance |
| Operating Temperature | 0°C~+40°C (32 to 104°F) |
| Humidity | Operating/Storage/Transportation 0% to 80% non condensing Altitude Hyperbaric Pressure 86kPa - 106kPa |
4.Advantage:
-Monitor Conn.: 12Pin;
-Patient Conn.: Clip-Style;
-Specification of lead wires: 5 leads;
-Length of Cable: 3500MM ± 50MM；
-Color Standard of lead wires: IEC color standard;
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 6 month, Non-human damage!

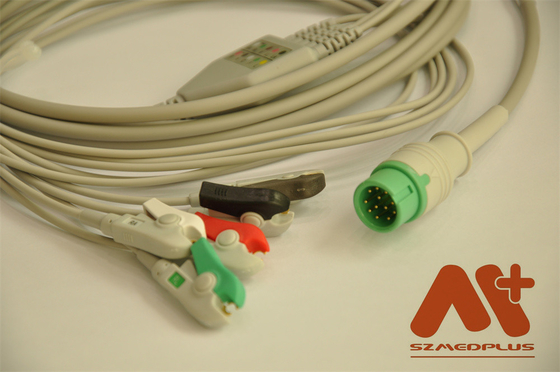

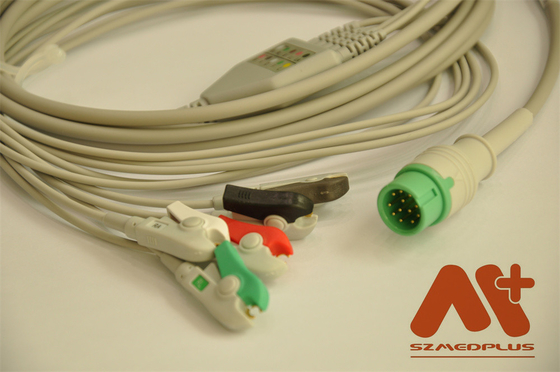

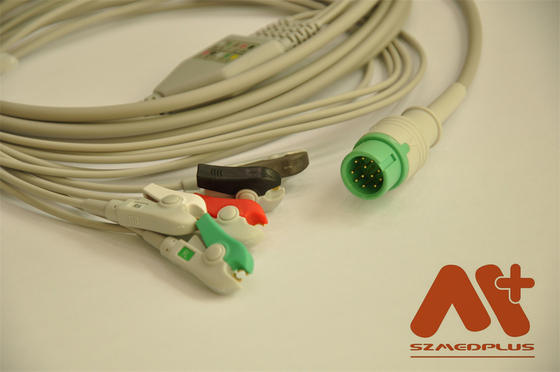

6.Image
