Product Details:
|
| Model: | CB-72395R | Material: | Medical TPU |
|---|---|---|---|
| Machine Connector: | 10Pin | Patient End: | Snap |
| Length: | 3.5M | Cable Diameter: | 5.0+2.6 Cable |
| Color: | Grey | Application: | Datex 10Pin Patient Monitor |
| High Light: | CFS Patient Monitor Cables Datex Ohmeda,Datex Ohmeda Ecg Cable CB-72395R,Patient Monitor Cables CB-72395R |
||
1.Description: Datex Ohmeda Compatible 3 Lead Snap Direct-Connect ECG Cable CB-72395R
2.OEM Part No
| Manufacturer | OEM Part # |
|---|---|
| AMC | CB-72395R |
3.Compatibility:
| Manufacturer | Model |
|---|---|
| Datex Ohmeda | AS/3, AS/3 Compact, Aespire, CS/3, Cardiocap I, Cardiocap II, Cardiocap/5, Light Monitor, M-ESTP, M-ESTPR, M-NESTPR, M-NESTR, S/5, S/5 Compact, Satlite Plus S5 |
4.Specification
| Connector | 10Pin |
| Cable material | medical TPU |
| Cable diameter | 4.0 mm |
| Patient end | Snap |
| Latex Free | Yes |
| Number of Leadwires | 3 lead |
| Standard | AHA |
| Certificate | ISO13485,CE |
| Package | 1 pc in bag |
| Warranty | 6 month for free |
| Category | ECG |
| Instrument connector | 10pin male |
| Trunk cable length | 250cm |
| Patient leadwires | 100cm |
| Patient end termination | IEC: 3-lead/5-lead, snap/clip |
| AHA: 3-lead/5-lead, snap/clip | |
| Resistor | 1K Resistance |
| Operating Temperature | 0°C~+40°C (32 to 104°F) |
| Humidity | Operating/Storage/Transportation 0% to 80% non condensing Altitude Hyperbaric Pressure 86kPa - 106kPa |
5.Advantage:
-Monitor Conn.: 10Pin;
-Patient Conn.: Snap-Style;
-Specification of lead wires: 3 leads;
-Length of Probe: 3400MM ± 50MM；
-Color Standard of lead wires: AAMI-American color standard;
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 12 month, Non-human damage!

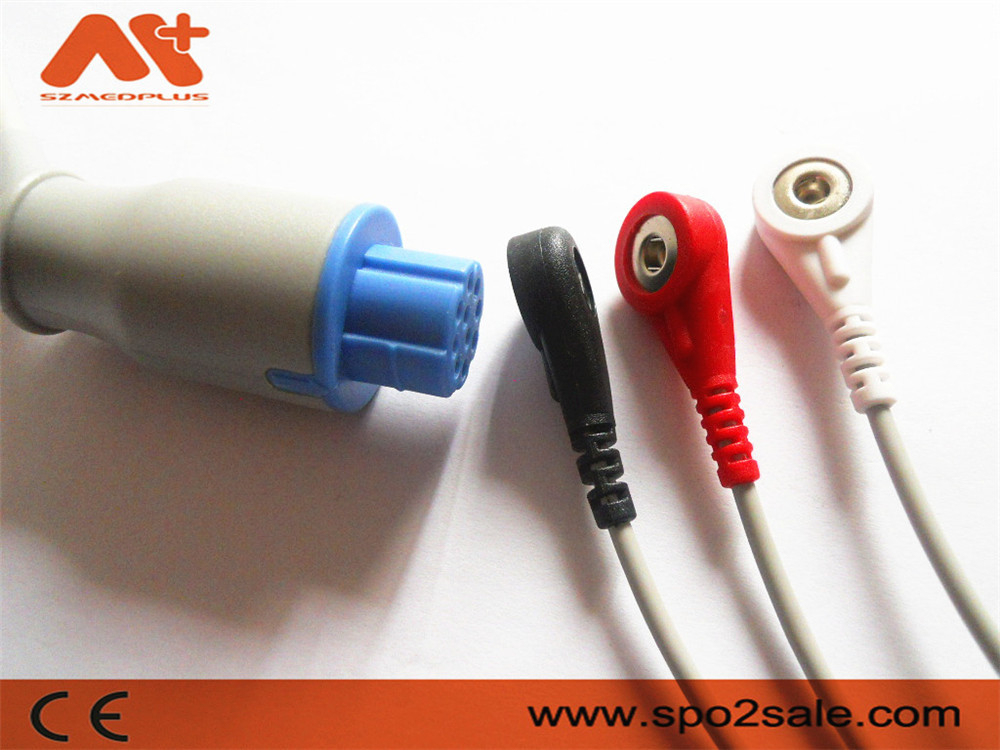

6.Image
