Product Details:
|
| OEM Part: | 1073/P | Machine Connector: | 6Pin |
|---|---|---|---|
| Patient End: | Clip | Application: | Patient Monitor,pulse Oximeter |
| Lead: | 3 Lead | ||
| Highlight: | Szmedplus AAMI ECG Cables And Leadwires,ECG Cables And Leadwires 6 Pin Szmedplus,CFS 6 Pin 3 Lead Ecg Cable |
||
1.szmedplus AAMI 3 lead ECG Cable with leadwires,TPU,6Pin,AHA,Clip
2.OEM Part Number Cross References:
| Manufacturer | OEM Part # |
|---|---|
| Conmed | FSR1311 (Cable only) |
| Criticare | 1073/P |
| Sage | A11-03P |
| Stryker > MEDTRONI > Physio Control | 11110-000167 |
3.Compatibility:
| Manufacturer | Model |
|---|---|
| AAMI | All |
| ATL | 800, 800 Plus, 800Plus, Apogee, CX ATL Ultrasound, CX200, CX400, HDI 9/200, HDI 9/2000, Interspec Cardiology XL, Mark IV, Mark Vii, Ultramark 4/5/7/9 |
| Abbott | EX-50, Lifecare 5100, Lifecare 5200 |
| Advanced Instrumentations | PM-1000, PM-1000EX |
| American Optical | 26125, 33167, 5260, 5330, Pulsar 4 |
| Carewell | CPM-8000 |
| Conmed | 90347 |
| Contec | CMS 6000, CMS 6800, CMS 7000, CMS 8000, CMS 9000 |
| Covidien > Nellcor | C-LOCK, N-1000, N-200, N-250, NPB-3900, NPB-4000 |
| Criticare | 1100, 2200, 504US, 504USP, 506, 507, 507E, 507ELC2, 507S, 508, 602-4B, 602-4USP, 8100, 8100E, 8100EP, 8100EP1, Poet 2, Scholar, nCompass, nGenuity 8100E |
| DIN Style | All |
| DRE | Waveline EZ MAX, Waveline Pro |
| Datex Ohmeda | enGuard CM5 |
| Digicare | LW600 |
| Dixtal | DX 2022, DX 2515 |
| Draeger > Air Shields | HRRM-71-1, HRRM-71-2, II, III, Porta-Fib I, Porta-Fib II, Porta-Fib III, System 5 (New), System 6 (Neonatal) |
| Draeger | Vitalert 2000, Vitalert 3000 |
| Edan | M50, M8, M80, M8A, M8B, M9, M9A |
| GE Healthcare > Corometrics | 556 |
| GE Healthcare > Critikon > Dinamap | 8100T, 8700 Series, 8700/9700, 9700 Series, MPS Select, Pro 1000 |
| Goldway | G30, G40, UT4000A, UT4000Apro, UT4000B, UT4000C, UT4000F, UT4000F Pro, UT4800, UT6000A, UT6000F |
| Guthan | 1000 |
| Infinium | Infitron II, Omni, Omni II |
| Interspec (Irex) (JandJ) | Cardiology XL, Mark IV, Mark Vii, Ultramark 4, Ultramark 4 Plus, Ultramark 5, Ultramark 7, Ultramark 9 |
| Invivo | 101, 102, 200, 300, 360SL, 450SL, 521A, Escort 100, Escort 101, Escort 102, Escort 200, Escort 300, M12, Millennia 3500, PortaPak 1000, PortaPak 80, PortaPak 90, PortaPak 90/1000, Prism |
| Ivy Biomedical | 101, 101 (before 1989), 3000, 402, 405T, 700, 7600, 7800, Cardiac Trigger Monitor 3150 |
| LSI | 261, LS5 |
| Mediana | YM6000 |
| Midmark > Cardell | 9403V, 9405, 9500 Series, MAX-12 Duo HD, Max-1 |
| Mindray > Datascope | DPM4, DPM5, MEC 1000, MEC 1200, MEC 200, MEC 2000, MEC-1200Vet, PM 7000, PM 8000, PM 9000 |
| Nihon Kohden | 7102A, BSM-7102A, BSM-7300A, BSM-8108A, BSM-8301A, BSM-8302A, BSM-8500A, BSM-8502A, BSM-8800A, Life Scope 12, Life Scope 6, Life Scope 7, Life Scope 8, Life Scope 9, MU-831RA, OEC-6102A (s/n>20156), OEC-6105A (s/n>20226), OEC-7102A, OEC-8108A, TEC 5531E, TEC-5200A (s/n>20421), TEC-7100A, TEC-7200A, TEC-7300A |
| Novametrix | 902, 903, 910, Life Defense 1 |
| Omron > Colin | BP-308, BP-408, CBM3000, M20, M30, MS20 |
| PPG | Guardian 1001, N1001 |
| PaceTech | 2100, 2200, 4000, 4100, MiniMax 4000CL, Minipack 300, Minipack 3000, Minipack 3000/3100, Minipack 3100, Modular/4100CL, Vitalmax 2100, Vitalmax 2200, Vitalmax 4000, Vitalmax 4000 Modular, Vitalmax 4000CL, Vitalmax 4100, Vitalmax 4100CL, Vitalmax 800 Plus |
| Philips | M3921A A1, M3923A A1, M3925A A1, M3927A A3, M3929A A3, iE33 xMatrix Ultrasound CX50 |
| Smiths Medical > BCI | 3101, 3404, 6100, 6200, 9100, 9200, Advisor, Autocorr, Autocorr: Surgivet |
| Spacelabs | 500, 600, 67112, 900, 90300, 90303, 90303B, 90400, 90408, 90425, 90428, 90431, 90432, 90600, 90601A, 90602A, 90603A, 90700, 90701, 90721, 90724, AriaTele, Medic 3, Medic 4, Medic 5, Medic 6, PC Bedside, Series 600, Series 900 |
| Stryker > MEDTRONI > Physio Control | 1440/R, Lifepak 10, Lifepak 5, Lifepak 6, Lifepak 6S, Lifepak 7, Lifepak 8, Lifepak 9, VSM-1ESF, VSM-2, VSM-2ESF, VSM-3 |
| Venni | VI-1060P |
| Welch Allyn | 1500, Atlas, PIC 30, PIC 40, PIC 50, Propaq 206 EMPSC, Ultra Smart |
| Zoll | D900, E Series, M Series, PD1200, PD1400, PD1600, PD1700, PD2000, R Series |
4.Specification
| Connector | AAMI 6Pin |
| Cable material | medical TPU |
| Cable diameter | 4.0 mm |
| Patient end | Clip |
| Latex Free | Yes |
| Number of Leadwires | 3 lead |
| Standard | AHA |
| Certificate | ISO13485,CE |
| Package | 1 pc in bag |
| Warranty | 6 month for free |
| Category | ECG |
| Instrument connector | 12pin male |
| Trunk cable length | 250cm |
| Patient leadwires | 100cm |
| Patient end termination | IEC: 3-lead/5-lead, snap/clip |
| AHA: 3-lead/5-lead, snap/clip | |
| Resistor | 1K Resistance |
| Operating Temperature | 0°C~+40°C (32 to 104°F) |
| Humidity | Operating/Storage/Transportation 0% to 80% non condensing Altitude Hyperbaric Pressure 86kPa - 106kPa |
5.Advantage:
-Monitor Conn.: Round-6Pin;
-Patient Conn.: Snap-Style;
-Specification of lead wires: 3 leads;
-Length of Probe: 3400MM ± 50MM；
-Color Standard of lead wires: AAMI-American color standard;
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 12 month, Non-human damage!

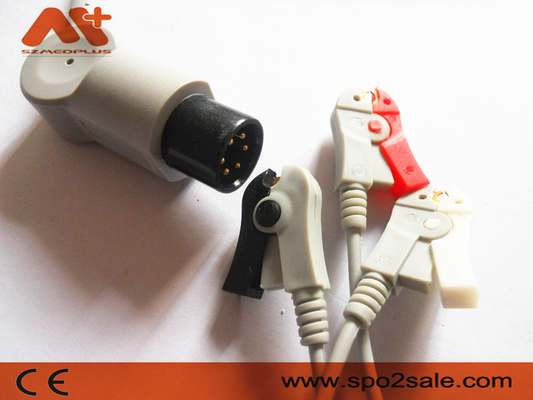

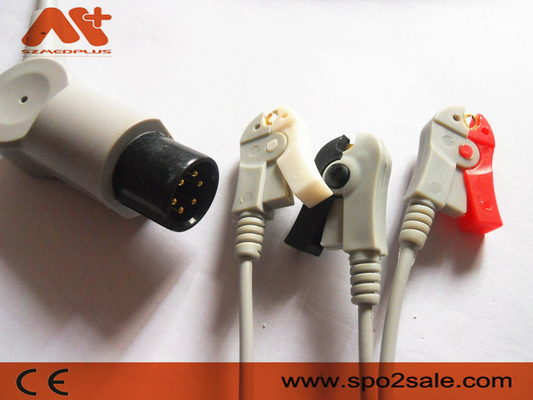

6..Image
