Product Details:
|
Model: | OEC Sery,TEC Sery | Machine Connector: | 7Pin |
---|---|---|---|
Patient End: | Snap | Cable Diameter: | 5.0+2.6 Cable |
Lead: | 3 Lead | Application: | Lohmerier M010,M011/M211 |
Highlight: | Lohmerier Patient Monitor Cables,Lohmerier ECG Cable 3 Lead,ECG Cable 3 Lead Snap For M010 |
1.Description: Lohmerier M010,M011/M211 Defi 501 Compatible 3 Lead Snap Direct-Connect ECG Cable
2.Compatibility
Manufacturer | Model |
---|---|
Lohmerier | M010,M011/M211 Defi 501 |
3.Specification
Connector | 7Pin |
Cable material | medical TPU |
Cable diameter | 5.0+2.6mm |
Patient end | Snap |
Latex Free | Yes |
Number of Leadwires | 3 lead |
Standard | AHA |
Certificate | ISO13485,CE |
Package | 1 pc in bag |
Warranty | 6 month for free |
Category | ECG |
Instrument connector | 7pin male |
Trunk cable length | 250cm |
Patient leadwires | 100cm |
Patient end termination | IEC: 3-lead/5-lead, snap/clip |
AHA: 3-lead/5-lead, snap/clip | |
Resistor | 1K Resistance |
Operating Temperature | 0°C~+40°C (32 to 104°F) |
Humidity | Operating/Storage/Transportation 0% to 80% non condensing Altitude Hyperbaric Pressure 86kPa - 106kPa |
4.Advantage:
-Monitor Conn.: 7Pin;
-Patient Conn.: Snap-Style;
-Specification of lead wires: 3 leads;
-Length of Probe: 3400MM ± 50MM;
-Color Standard of lead wires: AAMI-American color standard;
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 6 month, Non-human damage!

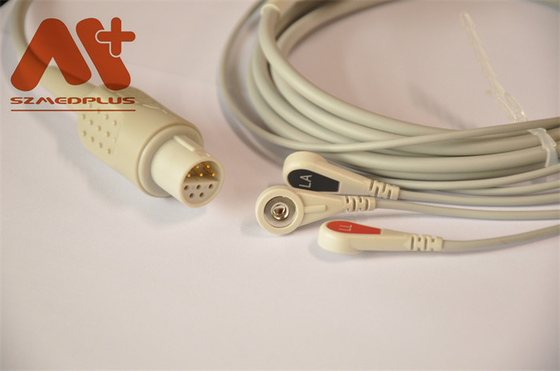

5.Image
