Product Details:
|
| Model: | 11110-000066 | Machine Connector: | 10Pin |
|---|---|---|---|
| Patient End: | Snap | Length: | 3.5M |
| Cable Diameter: | 5.0+2.6 Cable | Application: | MEDTRONI 10Pin Patient Monitor |

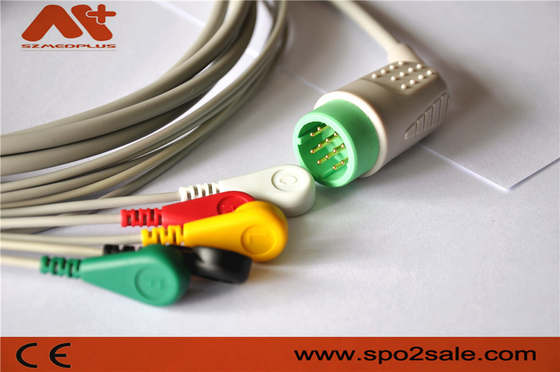

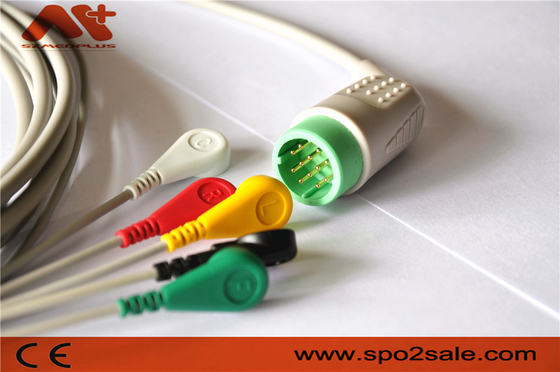

1.Description: Stryker > MEDTRONI > Physio Control Compatible 5 Lead Snap Direct-Connect ECG Cable - 11110-000066
2.OEM Part No
| Manufacturer | OEM Part # |
|---|---|
| AMC | CB-72507R |
| Sage | A19-05S |
| Stryker > MEDTRONI > Physio Control | 11110-000066, 3200496-006 |
| Tenacore | 42505 |
3.Compatibility
| Manufacturer | Model |
|---|---|
| Stryker > MEDTRONI > Physio Control | Lifepak 11, Lifepak 12, Lifepak 15, Lifepak 20 |
4.Specification
| Connector | 10Pin |
| Cable material | medical TPU |
| Cable diameter | 5.0+2.6mm |
| Patient end | Snap |
| Latex Free | Yes |
| Number of Leadwires | 5 lead |
| Standard | AHA |
| Certificate | ISO13485,CE |
| Package | 1 pc in bag |
| Warranty | 6 month for free |
| Category | ECG |
| Instrument connector | 10pin male |
| Trunk cable length | 250cm |
| Patient leadwires | 100cm |
| Patient end termination | IEC: 3-lead/5-lead, snap/clip |
| AHA: 3-lead/5-lead, snap/clip | |
| Resistor | 1K Resistance |
| Operating Temperature | 0°C~+40°C (32 to 104°F) |
| Humidity | Operating/Storage/Transportation 0% to 80% non condensing Altitude Hyperbaric Pressure 86kPa - 106kPa |
5.Advantage:
-Monitor Conn.: 10Pin;
-Patient Conn.: Snap-Style;
-Specification of lead wires: 5 leads;
-Length of Probe: 3400MM ± 50MM；
-Color Standard of lead wires: AAMI-American color standard;
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 6 month, Non-human damage!
6.Image
