Product Details:
|
| Model: | M1970A | Machine Connector: | 12Pin |
|---|---|---|---|
| Patient End: | Clip | Length: | 3.5M |
| Cable Diameter: | 5.0+2.6 Cable | Application: | Philips 12Pin Patient Monitor |
1.Description: Philips Compatible 3 Lead Clip Direct-Connect ECG Cable - M1970A
2.OEM Part No
| Manufacturer | OEM Part # |
|---|---|
| Pacific Medical | NEPH2131 |
| Philips | 989803143181, 989803160731, M1970A |
| Sage | A01-03P |
3.Compatibility:
| Manufacturer | Model |
|---|---|
| Konsung | Aurora 12s |
| Newtech | NT3A |
| Nihon Kohden | NT3B |
| Philips | 43100A, 43110A, 43120A, 78352C, 78354C, 78834C, 862474 C3, Agilent, Agilent 50XM, CX50, Efficia CM10 (863301), Efficia CM100 (863300), Efficia CM12 (863303), Efficia CM120 (863302), Efficia CM150 (863304), Envisor, Heartstart, IE33, IntelliVue, IntelliVue MP5, IntelliVue MX400, IntelliVue MX450, IntelliVue MX500, IntelliVue MX550, IntelliVue MX600, IntelliVue MX700, IntelliVue MX800, IntelliVue X3, M1001A, M1002A, M1165A, M1166A, M1167A, M1175A, M1177A, M1204A, M1205A, M1264A, M1275A Transport, M1276A, M1280A, M1722A, M1722B, M1723A, M1723B, M2, M2475B, M2601A, M3, M3000A, M3001A, M3046A M3, M4, M4735A, MMS X2, MP 20, MP 30, MP 50, MP 60, MP 70, SureSigns VM6, SureSigns VM8, V24E, VM4, VM6, VM8, Viridia, М3046А |
| Solaris | NT3C, NT3E, NT3F |
| Welch Allyn | 242, Propaq Encore 206EL |
4.Specification
| Connector | 12Pin |
| Cable material | medical TPU |
| Cable diameter | 5.0+2.6mm |
| Patient end | Clip |
| Latex Free | Yes |
| Number of Leadwires | 3 lead |
| Standard | AHA |
| Certificate | ISO13485,CE |
| Package | 1 pc in bag |
| Warranty | 6 month for free |
| Category | ECG |
| Instrument connector | 12pin male |
| Trunk cable length | 250cm |
| Patient leadwires | 100cm |
| Patient end termination | IEC: 3-lead/5-lead, snap/clip |
| AHA: 3-lead/5-lead, snap/clip | |
| Resistor | 1K Resistance |
| Operating Temperature | 0°C~+40°C (32 to 104°F) |
| Humidity | Operating/Storage/Transportation 0% to 80% non condensing Altitude Hyperbaric Pressure 86kPa - 106kPa |
5.Advantage:
-Monitor Conn.: 12Pin;
-Patient Conn.: Clip-Style;
-Specification of lead wires: 3 leads;
-Length of Probe: 3400MM ± 50MM；
-Color Standard of lead wires: AAMI-American color standard;
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 6 month, Non-human damage!

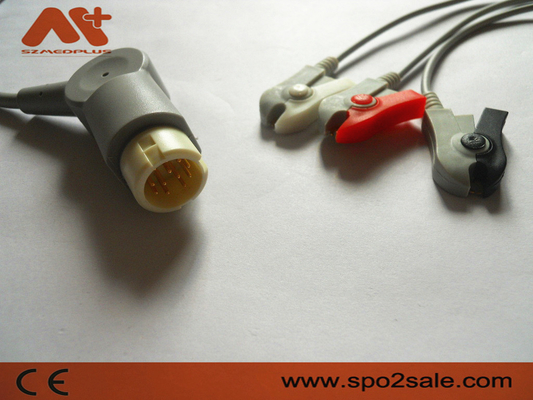

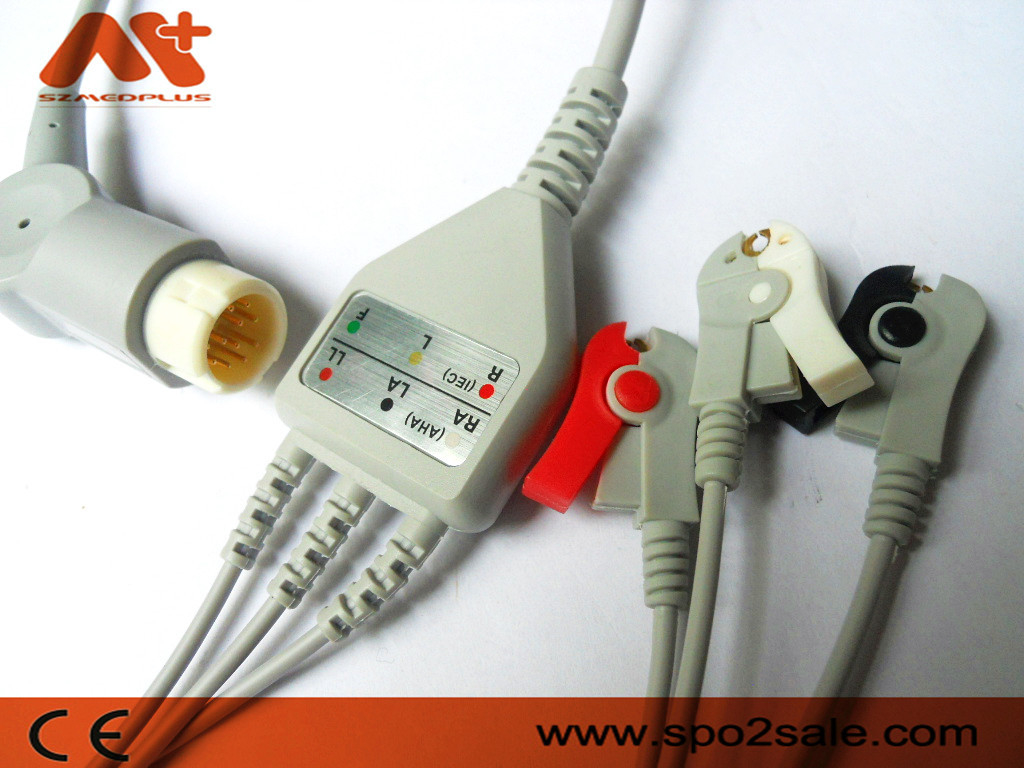

6.Image
