Product Details:
|
| Model: | M1736A | Machine Connector: | 8Pin |
|---|---|---|---|
| Patient End: | Snap | Length: | 3.5M |
| Cable Diameter: | 5.0+2.6 Cable | Application: | Philips 8Pin Patient Monitor |
1.Description: Philips Compatible 5 Lead Snap Direct-Connect ECG Cable - M1736A
2.OEM Part No
| Manufacturer | OEM Part # |
|---|---|
| AMC | CB-725029R |
| Curbell | CBM-05GA-10AS-0021 |
| Philips | M1736A |
3.Compatibility:
| Manufacturer | Model |
|---|---|
| Nihon Kohden | 66A, ML65A, Merlin 78352C, Merlin 78354C, Merlin 78834C, Omnicare CMA |
| Philips | 43100A, 43110A, 43110M, 43120A, 43200A Portable, 77000AC, 77010AC, 77020A, 77025A, 77030A, 77035A, 77040A, 78208A, 78210A, 78330A, 78331A, 78332A, 78333A, 78341A, 78342A, 78345A, 78346A, 78351T, 78352A/C, 78353A/B, 78354A, 78532A/B, 78534A/B/C, 78619A, 78620A, 78660A/B, 78661A/B, 78670A, 78671A, CodeMaster XL+, Codemaster 100, Codemaster XL, M1001A, M1002A, M1722A/B, M1723A/B, M2400A, M2406A, M2425A, M2475B, M3500B, MC Defibrillator, Sonos 2000/2500, Sonos/AC/AR, Viridia, tems |
4.Specification
| Connector | 8Pin |
| Cable material | medical TPU |
| Cable diameter | 4.0 mm |
| Patient end | Snap |
| Latex Free | Yes |
| Number of Leadwires | 5 lead |
| Standard | AHA |
| Certificate | ISO13485,CE |
| Package | 1 pc in bag |
| Warranty | 6 month for free |
| Category | ECG |
| Instrument connector | 8pin male |
| Trunk cable length | 250cm |
| Patient leadwires | 100cm |
| Patient end termination | IEC: 3-lead/5-lead, snap/clip |
| AHA: 3-lead/5-lead, snap/clip | |
| Resistor | 1K Resistance |
| Operating Temperature | 0°C~+40°C (32 to 104°F) |
| Humidity | Operating/Storage/Transportation 0% to 80% non condensing Altitude Hyperbaric Pressure 86kPa - 106kPa |
5.Advantage:
-Monitor Conn.: 8Pin;
-Patient Conn.: Snap-Style;
-Specification of lead wires: 5 leads;
-Length of Probe: 3400MM ± 50MM；
-Color Standard of lead wires: AAMI-American color standard;
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 6 month, Non-human damage!

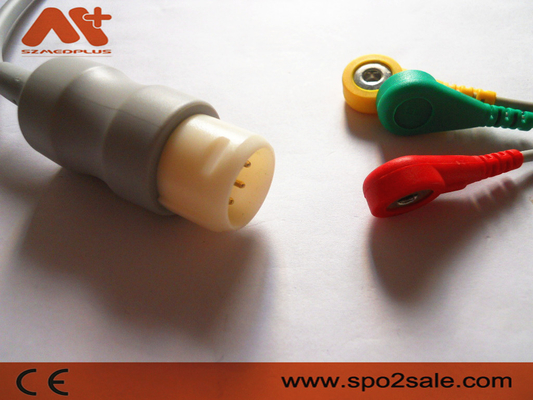

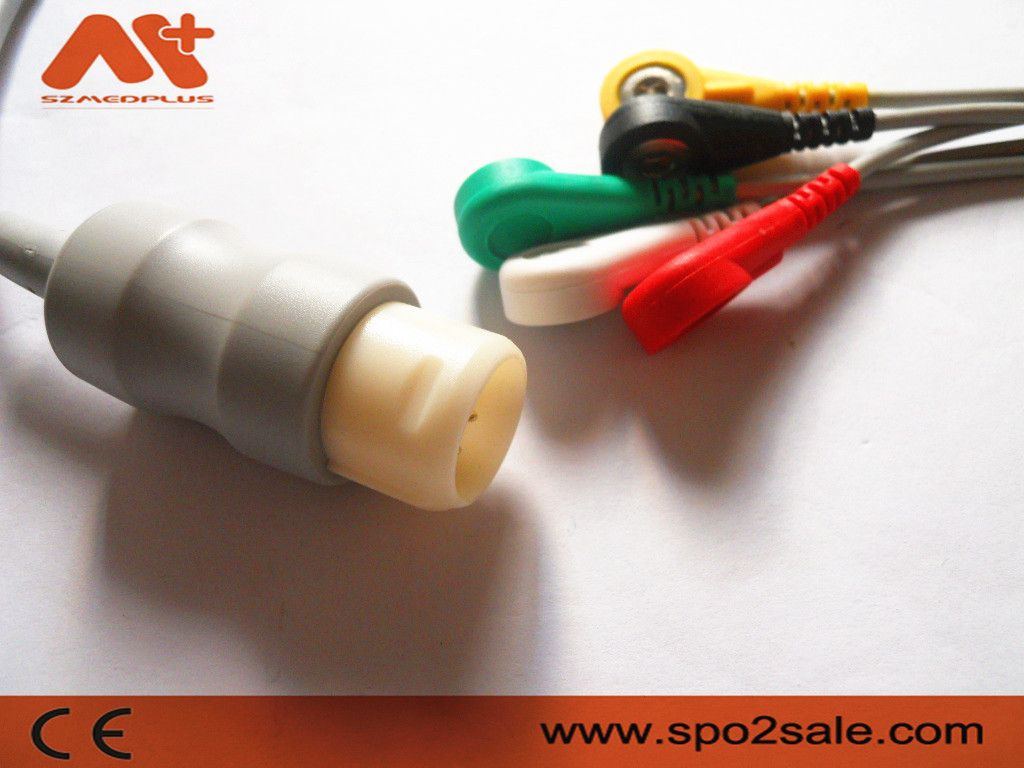

6.Image
