Product Details:
|
| OEM Part: | 0010-30-42732 | Patient Connector: | Twin Pin Connector |
|---|---|---|---|
| Patient End: | Snap IEC | Length: | 3ft |
| Lead: | 5 Lead | Application: | Mindray Patient Monitor |

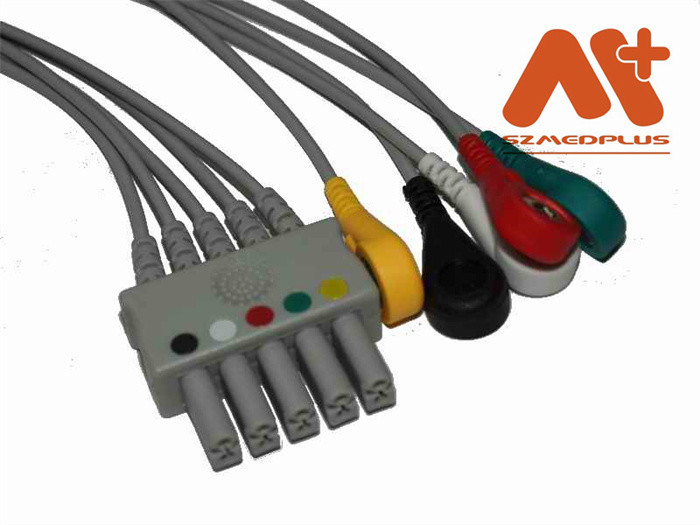

1.Description: Mindray > Datascope Compatible 5 Lead Snap ECG Leadwire - 0012-00-1261-06
2.OEM Part Number Cross References
| Manufacturer | OEM Part # |
|---|---|
| Mindray > Datascope | 0012-00-1261-06 (40 inches), 0012-00-1261-05 (24 inches), 0012-00-1261-04 (18 inches) |
3.Compatibility
| Manufacturer | Model |
|---|---|
| Edan | X12, iM20, iM70, iM80 |
| Midmark > Cardell | Touch, Touch (Vet) |
| Mindray > Datascope | BeneHeart D3, BeneView T1, BeneView T5, BeneView T8, BeneVision N1, Beneheart D6, DPM4, DPM5, DPM6, DPM7, Expert, MEC 1000, MPM, PM 5000, PM 6000, PM 8000, PM 8000 Express, PM 8000 with szmedplus technology, PM-9000Vet, PM5000, PM6000, Passport 12, Passport 12m, Passport 17m, Passport 2, Passport 2LT, Passport 8, Passport XG, Spectrum, Spectrum OR, T8, Trio, cPM 12, cPM 8, ePM 10M, ePM 12M, iPM-9800, iPM12VET |
| Penlon InterMed | All |
4.Specification
| Patient Connector | Twin Pin |
| Cable material | medical TPU |
| Cable diameter | 2.6 mm |
| Patient end | Clip |
| Latex Free | Yes |
| Number of Leadwires | 3 lead |
| Standard | IEC |
| Certificate | ISO13485,CE |
| Package | 1 pc in bag |
| Warranty | 6 month for free |
5.Advantage:
-Patient Conn.: Twin Pinstyple;
-Patient Conn.: Snap-Style;
-Specification of lead wires: 5 leads;
-Length of Probe: 1000MM ± 50MM；
-Color Standard of lead wires: AAMI-American color standard;
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 6 month, Non-human damage!
6.Image
