Product Details:
|
| OEM Part: | M1590A | Monitor Connector: | 8Pin |
|---|---|---|---|
| Patient End: | Twin Pin Connector | Length: | 2.5M |
| Lead: | 3 Lead | Application: | Philips 8pin Patient Monitor |

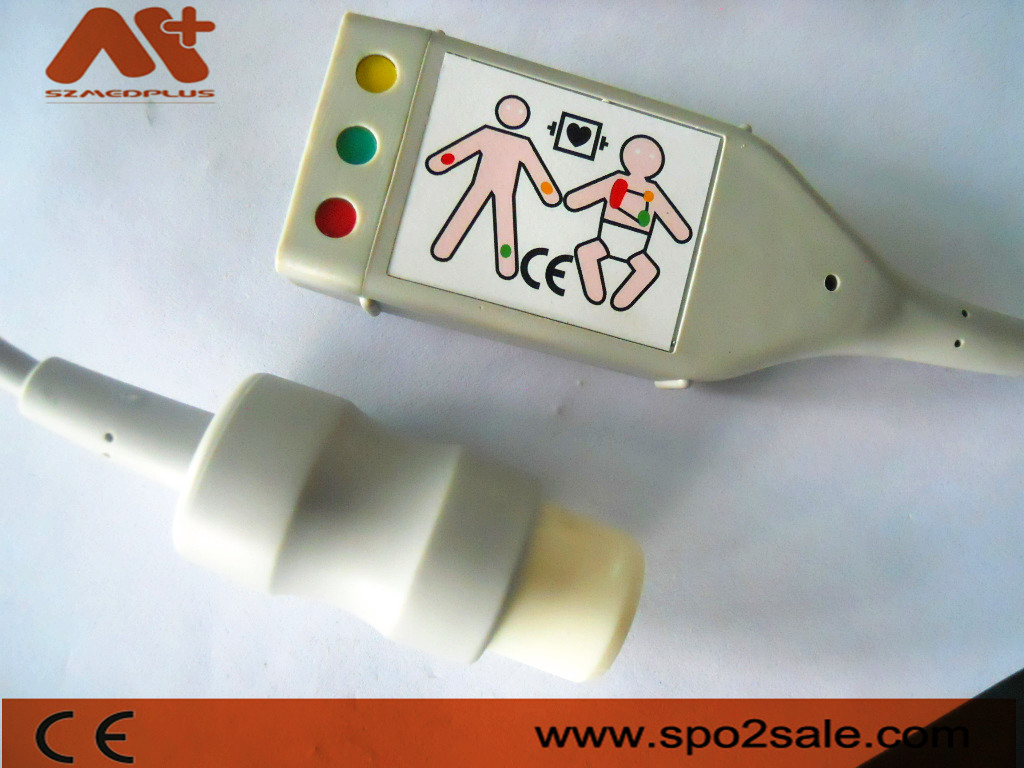

1.Description: Philips Compatible 3 Lead ECG Trunk Cable - M1590A
2.OEM Part Number Cross References
| Manufacturer | OEM Part # |
|---|---|
| AMC | CB-813029R/I |
| Philips | M1590A |
3.Compatibility
| Manufacturer | Model |
|---|---|
| Philips | 43011A, 77000AC, 77020A, 77020AC, 77020AR, 77025A, 77030A, 77035A, 77040A, 78208A, 78210A, 782xxA Series, 78330A, 78331A, 78332A, 78333A, 78341A, 78342A, 78345A, 78346A, 78351T, 78352A, 78353A, 78353B, 78354A, 783xxA Series, 78532A, 78532B, 78534A, 78534B, 78534C, 785xxA, 785xxB, 785xxC, 786xxA, 786xxB, Agilent Sonos 5500, Codemaster XL, M1722A, M1722B, M1723A, M1723B, M2400A, M2406A, M2475B, M3500B |
4.Specification
| Connector | 8Pin |
| Cable material | medical TPU |
| Cable diameter | 5.0 mm |
| Patient end | twin pin |
| Latex Free | Yes |
| Number of Leadwires | 3 lead |
| Standard | IEC |
| Certificate | ISO13485,CE |
| Package | 1 pc in bag |
| Warranty | 6 month for free |
5.Advantage:
-Monitor Conn.: 8Pin styple;
-Patient Conn.: Twin Pin-Style;
-Specification of lead wires: 6 leads;
-Length of Probe: 2500MM ± 50MM；
-Color Standard of lead wires: AAMI-American color standard;
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 6 month, Non-human damage!
