Product Details:
|
| OEM Part: | M1500A | Monitor Connector: | 12Pin |
|---|---|---|---|
| Patient End: | Twin Pin Connector | Length: | 2.5M |
| Lead: | 5 Lead | Application: | Philips 12Pin Patient Monitor |
| High Light: | ECG Patient Cable 12 Pin,3Lead ECG Patient Cable,12 Pin Philips M1500A |
||
1.Description: Philips Compatible 3 lead ECG Trunk Cable - M1500A
2.OEM Part Number Cross References
| Manufacturer | OEM Part # |
|---|---|
| AMC | CB-81385R |
| Cardinal Health | 31285276A |
| Curbell | CBT-03JB-10CS-0121 |
| Mindray > Datascope | 0012-00-0846 |
| Pacific Medical | NEPH1500 |
| Philips | M1500A, 989803103811, M1540C, 453561233921 |
| RPI | KCC012 (10 ft length) |
| Sage | T08-03-30M |
| Smiths Medical > BCI | V3110TL |
| Tenacore | 43385 |
3.Compatibility
| Manufacturer | Model |
|---|---|
| Newtech | NT3A |
| Nihon Kohden | NT3B, Omnicare CMA |
| Philips | 43100A, 43110A, 43120A, 78352C, 78354A/C, 78354C, 78834A/B/C, 78834C, 862472, 862473, 862474, 862474 C3, 862475, 862478, 862479, 863064, 863065, 863066, 863068, Agilent, Agilent 50XM, C Series, C3, CX50, CodeMaster XL+, Codemaster XL, Envisor, HD11, HD11XE, HD15, HeartStart MRx, HeartStart XL, Heartstart, Heartstream, IE33, IntelliVue, IntelliVue MX400, IntelliVue MX450, IntelliVue MX500, IntelliVue MX550, IntelliVue MX600, IntelliVue MX700, IntelliVue MX800, M1001A, M1001B, M1002A, M1002B, M1165A, M1166A, M1167A, M1175A, M1177A, M1204A, M1205A, M1264A, M1275A Transport, M1276A, M1280A, M1722A, M1722B, M1723A, M1723B, M2, M2475B, M2601A, M3, M3000A, M3001A, M3002A MMS X2, M3535A, M3536A, M4, M4735A, M8102A MP2, M8105A MP5, MP 20, MP 30, MP 40, MP 50, MP 60, MP 70, Merlin, SureSigns VM6, SureSigns VM8, V24, V24E, V26, VM4, Viridia, М3046А |
| Smiths Medical > BCI | SurgiVet V9200 |
| Solaris | NT3C, NT3E, NT3F |
| Welch Allyn | 242, Propaq Encore 206EL |
4.Specification
| Connector | 12Pin |
| Cable material | medical TPU |
| Cable diameter | 5.0 mm |
| Patient end | twin pin |
| Latex Free | Yes |
| Number of Leadwires | 3 lead |
| Standard | AHA |
| Certificate | ISO13485,CE |
| Package | 1 pc in bag |
| Warranty | 6 month for free |
5.Advantage:
-Monitor Conn.: 12Pin styple;
-Patient Conn.: Mold Din-Style;
-Specification of lead wires: 3 leads;
-Length of Probe: 2500MM ± 50MM；
-Color Standard of lead wires: AAMI-American color standard;
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 6 month, Non-human damage!

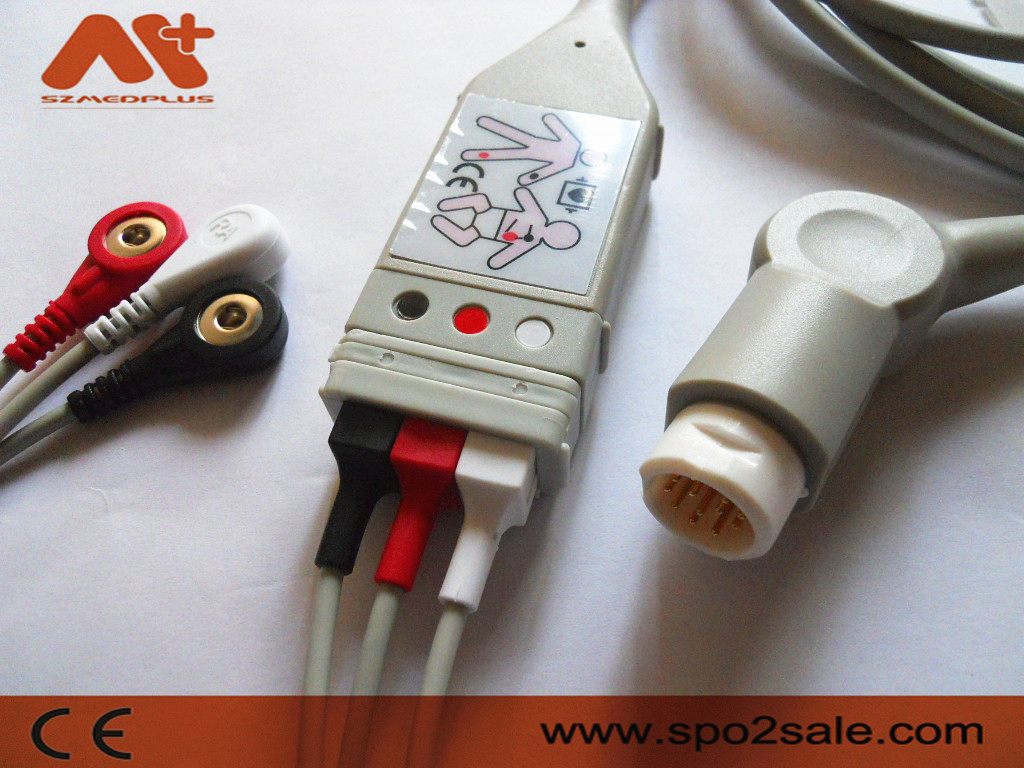

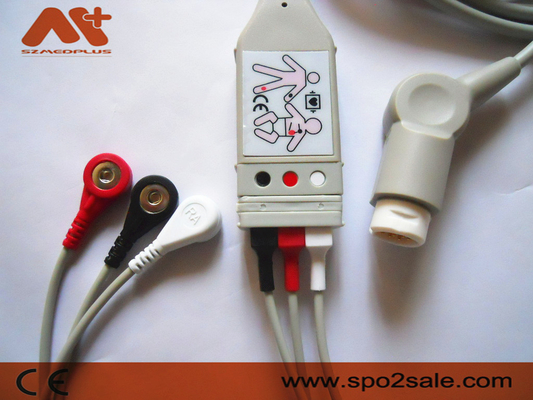

6.Image
