Product Details:
|
| OEM Part: | 700-0006-00 | Patient Connector: | Twin Pin Connector |
|---|---|---|---|
| Patient End: | Clip AHA | Length: | 3ft |
| Lead: | 3 Lead | Application: | Spacelabs Ultraview Patient Monitor |

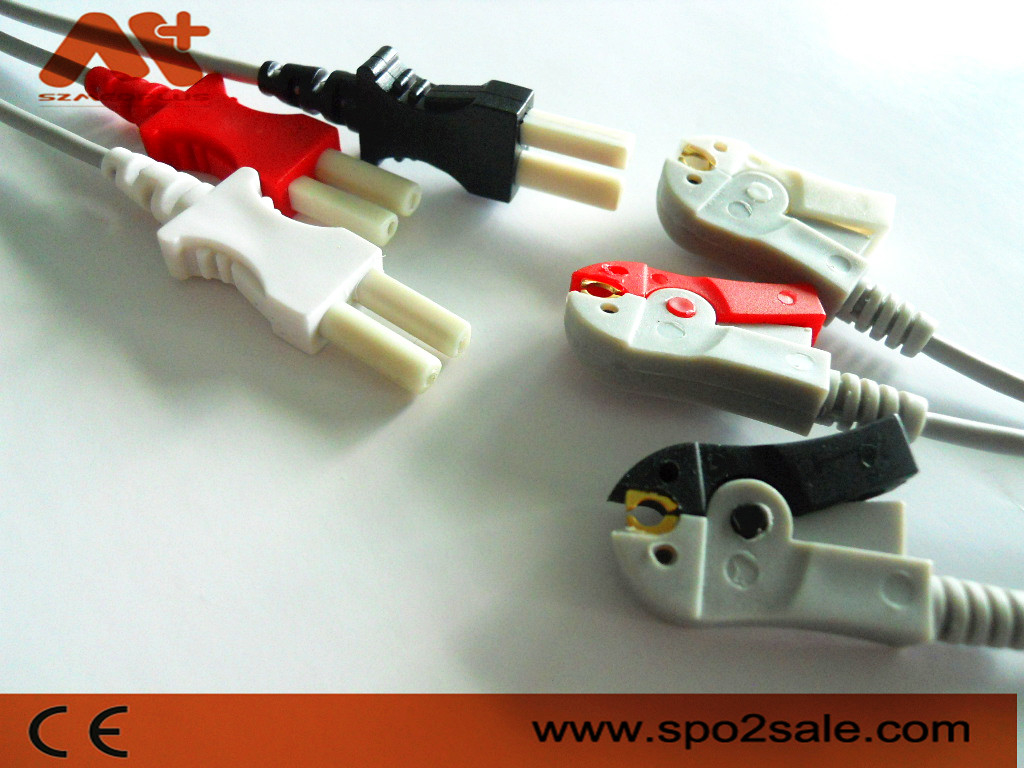

1.Description: Spacelabs Compatible 3 lead clip ECG Leadwire - 700-0006-00
2.OEM Part Number Cross References
| Manufacturer | OEM Part # |
|---|---|
| AMC | LW-3500040/3A (40 inch), LW-3500024/3A (24 inch) |
| Curbell | LDW-03BC-24AT-0100 (24"), LDW-03BC-40AT-0100 (40") |
| Sage | L03-03-29P |
| Spacelabs | 700-0006-00, 700-0006-02 |
3.Compatibility
| Manufacturer | Model |
|---|---|
| Spacelabs | 90309, 90367, 90367 Ultraview, 90369, 90369 Ultraview, 90492, 90496, 90496 Ultraview, 91220, 91220 mCare 300, 91369, 91387, 91496, 93300, Elance Series, Tru-Link, Ultraview, Ultraview SL |
4.Specification
| Patient Connector | Twin Pin |
| Cable material | medical TPU |
| Cable diameter | 2.6 mm |
| Patient end | Clip |
| Latex Free | Yes |
| Number of Leadwires | 3 lead |
| Standard | AHA |
| Certificate | ISO13485,CE |
| Package | 1 pc in bag |
| Warranty | 6 month for free |
5.Advantage:
-Patient Conn.: Twin Pinstyple;
-Patient Conn.: Clip-Style;
-Specification of lead wires: 3 leads;
-Length of Probe: 1000MM ± 50MM；
-Color Standard of lead wires: AAMI-American color standard;
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 6 month, Non-human damage!
6.Image
