Product Details:
|
| OEM Part: | 700-0008-08 | Monitor Connector: | 17Pin |
|---|---|---|---|
| Patient End: | Twin Pin Connector | Length: | 2.5M |
| Lead: | 3 Lead | Application: | Spacelabs Ultraview Patient Monitor |
1.Description: Spacelabs Compatible 3 lead ECG Trunk Cable - 700-0008-08
2.OEM Part Number Cross References
| Manufacturer | OEM Part # |
|---|---|
| AMC | CB-61396R |
| Curbell | CBT-03MC-10CT-0021 |
| Sage | T03-03-30M |
| Schiller | 55.065081 |
| Spacelabs | 012-0108-01, 700-0008-08 |
3.Compatibility
| Manufacturer | Model |
|---|---|
| Spacelabs | 90309, 90367, 90367 Ultraview, 90369, 90369 Ultraview, 90492, 90496, 90496 Ultraview, 91220 mCare 300, 91369, 91496, 93300, Elance Series, Qube, Ultraview, Ultraview SL |
4.Specification
| Connector | 17Pin |
| Cable material | medical TPU |
| Cable diameter | 5.0 mm |
| Patient end | Twin Pin style |
| Latex Free | Yes |
| Number of Leadwires | 3 lead |
| Standard | AHA |
| Certificate | ISO13485,CE |
| Package | 1 pc in bag |
| Warranty | 6 month for free |
5.Advantage:
-Monitor Conn.: 17Pin styple;
-Patient Conn.: Twin Pin-Style;
-Specification of lead wires: 5 leads;
-Length of Probe: 2500MM ± 50MM；
-Color Standard of lead wires: AAMI-American color standard;
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 6 month, Non-human damage!

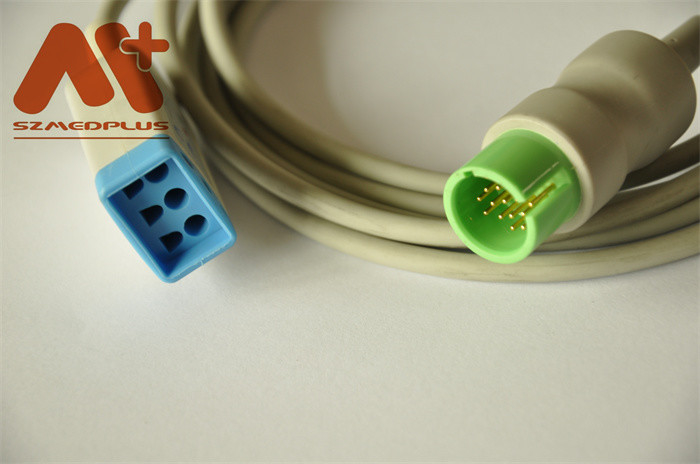

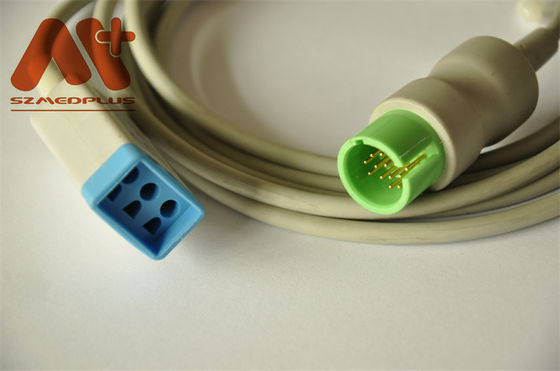

6.Image
