Product Details:
|
| OEM Part: | 5590539 | Monitor Connector: | 16-pin Draeger Infinity Connector |
|---|---|---|---|
| Patient End: | ECG/Resp./SpO2/Dual Temp/FiO2 | Color: | AHA&IEC |
| Lead: | 3/5 Lead | Application: | Draeger Infinity Patient Monitor |
1.Description: Draeger Compatible ECG Trunk Cable - 5590539
2.OEM Part Number Cross References
| Manufacturer | OEM Part # |
|---|---|
| Draeger | 5590539 (NeoMed pod) |
3.Compatibility
| Manufacturer | Model |
|---|---|
| Draeger | Infinity Delta, Infinity Delta XL, Infinity Kappa, Infinity Vista |
| Siemens | SC7000, SC8000, SC9000XL |
4.Specification
| Connector | 16-pin Draeger Infinity Connector |
| Cable material | medical TPU |
| Cable Length | 2ft |
| Patient end | ECG/Resp./SpO2/Dual Temp/FiO2 |
| Latex Free | Yes |
| Number of Leadwires | 3/5 lead |
| Standard | AHA&IEC |
| Certificate | ISO13485,CE |
| Package | 1 pc in bag |
| Warranty | 6 month for free |
5.Advantage:
-Monitor Conn.: 16-pin Draeger Infinity Connector;
-Patient Conn.: ECG/Resp./SpO2/Dual Temp/FiO2;
-Specification of lead wires: 3/5 leads;
-Length of Probe: 2ft；
-Color Standard of lead wires: AAMI-American color standard;
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 6 month, Non-human damage!

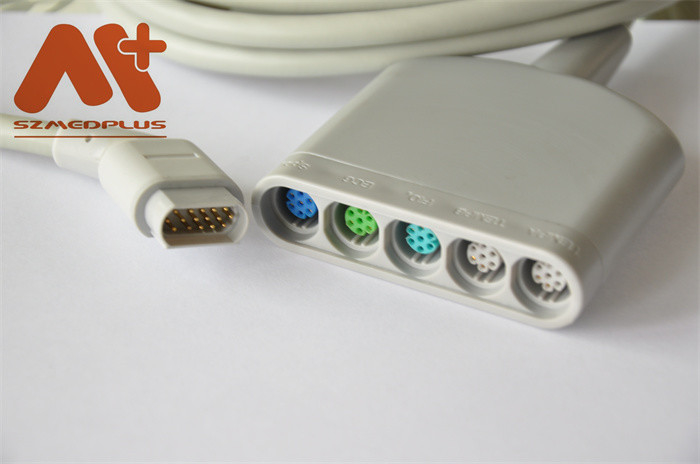

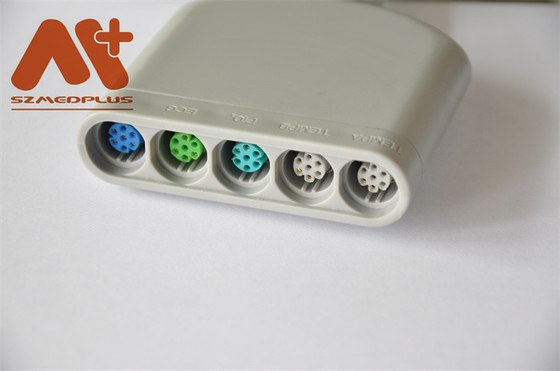

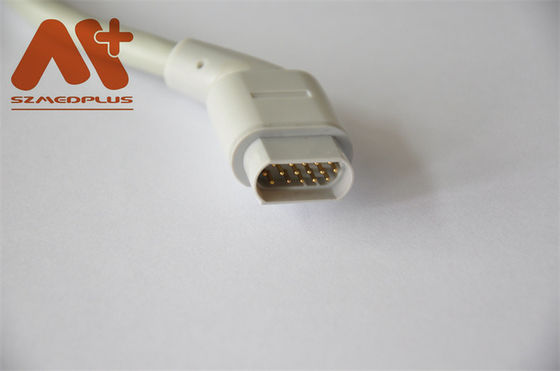

6.Image
