Product Details:
|
| OEM Part: | MS16547 | Patient Connector: | Din Style |
|---|---|---|---|
| Patient End: | Clip,AHA | Length: | 3ft |
| Lead: | 6 Lead | Application: | Draeger Multimed Patient Monitor |
1.Description: Draeger Compatible 6 lead clip ECG Leadwire - MS16547
2.OEM Part Number Cross References
| Manufacturer | OEM Part # |
|---|---|
| Draeger | MS16547, MP03406 |
3.Compatibility
| Manufacturer | Model |
|---|---|
| Draeger | Infinity M300, Infinity M540, MultiMed Plus, MultiMed Plus OR |
4.Specification
| Connector | Din style |
| Cable material | medical TPU |
| Cable diameter | 2.6 mm |
| Patient end | Clip |
| Latex Free | Yes |
| Number of Leadwires | 6 lead |
| Standard | AHA |
| Certificate | ISO13485,CE |
| Package | 1 pc in bag |
| Warranty | 6 month for free |
5.Advantage:
-Patient Conn.: Din Style styple;
-Patient Conn.: Clip-Style;
-Specification of lead wires: 6 leads;
-Length of Probe: 900MM ± 50MM；
-Color Standard of lead wires: AAMI-American color standard;
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 6 month, Non-human damage!

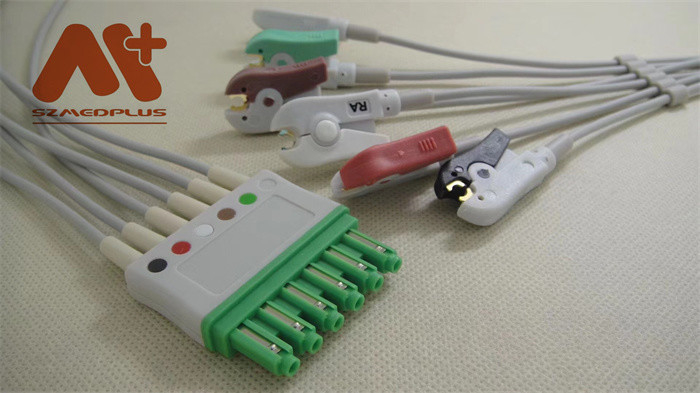

6.Image
