Product Details:
|
| OEM Part: | 412681-001 | Patient Connector: | Multi-Link Group Connector |
|---|---|---|---|
| Patient End: | Clip,AHA | Length: | 3ft |
| Lead: | 5 Lead | Application: | GE Patient Monitor |
| High Light: | 5 Lead Clip 412681-001,GE Marquette Compatible 412681-001,Multi Link Cable GE Marquette Compatible |
||
1.Description: GE Healthcare > Marquette Compatible 5 lead clip ECG Leadwire - 412681-001
2.OEM Part Number Cross References
| Manufacturer | OEM Part # |
|---|---|
| AMC | LW-3410029/5A (29 inch), LW-3400029/5A (29 inch individually replaceable) |
| Curbell | LDW-05BW-29AM-0000 (29 inch), LDW-05BW-51AM-0000 (51 inch), LDW-05BW-MXAM-0000 (Mixed length) |
| GE Healthcare > Marquette | 412681-001 (29 inch), 412681-002 (51 inch), 412681-005 (Mixed length), 414556-001 (29 inch individually replaceable), 414556-002 (51 inch individually replaceable), 414556-005 (Mixed Length), E9002ZW, E9003CJ, 2106389-001 (29 inch), 2106389-002 (51 inch), 2106389-005 (Mixed Length), 2106391-001 (29 inch individually replaceable), 2106391-002 (51 inch individually replaceable), 2106391-005 (Mixed Length) |
| Pacific Medical | NLMQ5251-S |
| RPI | LKM055 (30 inch), LKM057 (30 inch individually replaceable) |
| Sage | L02-05-29P, L02-05-51P, L02-05-MP |
| Tenacore | 41738-P |
3.Compatibility
| Manufacturer | Model |
|---|---|
| Datex Ohmeda | Aestiva/5, E-PRESTN, M-PRESTN, Unity |
| Draeger | Narkomed 6400 |
| GE Healthcare > Corometrics | 120, 250cx, 259cx |
| GE Healthcare > Critikon > Dinamap | Carescape B105, Carescape B125, Carescape B450, Carescape B650, Carescape B850, Carescape One, Procare B40 |
| GE Healthcare > Marquette | ApexPro CH, Dash 1000, Dash 2000, Dash 2500, Dash 3000, Dash 4000, Dash 5000, Dash PRO 2000, Dash PRO 3000, Dash PRO 4000, E-PRESTN, Eagle, Eagle Systems, MAC-Lab, PDM Module, Responder 2000, Responder 3000, Solar 3000, Solar 8000, Solar 9500, Tram 100, Tram 200, Tram 300, Tram 400, Tram 451, Tram 500, Tram 600, Tram 800, Unity Systems |
| GE Healthcare | Aisys CS2, Logiq 5, Logiq 7, Logiq E9, Vivid 7, Vivid S6, Vivid e80, Vivid e9, Vivid e90, Vivid e95, Vivid i |
4.Specification
| Connector | Multi-Link style |
| Cable material | medical TPU |
| Cable diameter | 2.6 mm |
| Patient end | Clip |
| Latex Free | Yes |
| Number of Leadwires | 5 lead |
| Standard | AHA |
| Certificate | ISO13485,CE |
| Package | 1 pc in bag |
| Warranty | 6 month for free |
5.Advantage:
-Patient Conn.: Multi-Link styple;
-Patient Conn.: Clip-Style;
-Specification of lead wires: 5 leads;
-Length of Probe: 900MM ± 50MM；
-Color Standard of lead wires: AAMI-American color standard;
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 6 month, Non-human damage!

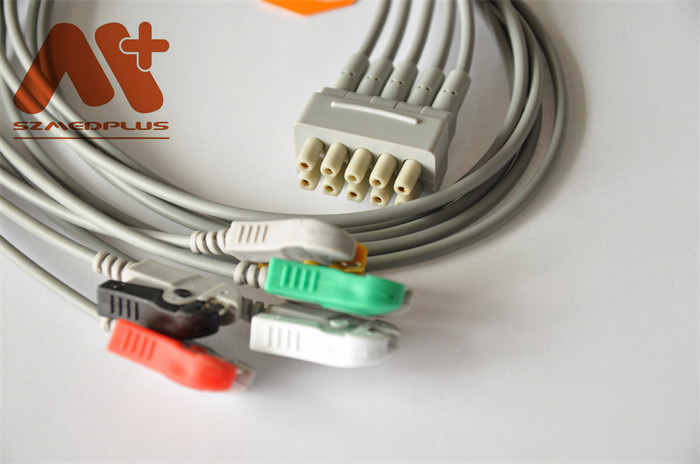

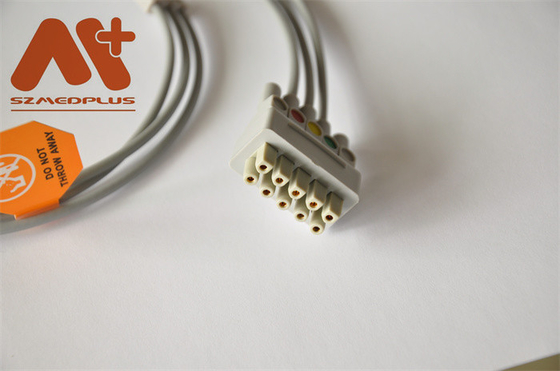

6.Image
