Product Details:
|
| OEM Part: | 502-0400 | Machine Connector: | Mono Plug Connector |
|---|---|---|---|
| Patient Side: | Rectangular Dual Pin Connector, 90° | Application: | Patient Monitor |
| Datex Ohmeda: | 165640, 165641 | Sage: | TP01-30-AD |
| High Light: | PVC Medical Temperature Probe,502-0400 Medical Temperature Probe,ISO13485 skin temperature probe |
||
PVC Medical Temperature Probe 502-0400 ISO13485 CE Certificate
temperature probe is a sensitive and accurate temperature transducer, to be used clinically where continuous temperature monitoring is required. The sensor is designed for insertion into esophagus or rectum and consists of an electrically insulated thermistor permanently secured within a PVC tube. The bullet tipped PVC tube provides atraumatic insertion. Leakage current of the temperature probe (thermistor and PVC tube) is well within clinically accepted non-hazardous levels.
1.Description: Covidien > Nellcor Compatible Temperature Adapter - 502-0400
2.OEM Part Number Cross References
| Manufacturer | OEM Part # |
|---|---|
| Covidien > Nellcor | 502-0410, 502-0400 |
| Datex Ohmeda | 165640, 165641 |
| GE Healthcare > Marquette | 9445-801 |
| Mindray > Datascope | 0012-00-0975 |
| NOVAMED | 11-CA-400-12 (12 ft), 11-CA-400-20 (20 ft) |
| Sage | TP01-30-AD |
| Smiths Medical > BCI | V3413, C400-10 |
| Spacelabs | 700-4000-00 |
| Stryker > MEDTRONI > Physio Control | ADP10CE |
3.Compatibility
| Manufacturer | Model |
|---|---|
| CAS Med | 750 |
| Carewell | CPM-9000T |
| Criticare | 1100, 2200, 506, 507, 507E, 507ELC, 507S, 508, 8100 |
| Datex Ohmeda | CS/3, Cardiocap I, Cardiocap II, Cardiocap/5, Light Monitor, M-ESTP, S/3, S/5, Satliteplus |
| Draeger | Infinity Delta, Infinity Gamma, Infinity Kappa, Infinity Vista, Narkomed 6400 |
| Edan | M50, M80 |
| Invivo | MDE Prism |
| MEK | MP 100, MP 1000, MP 110, MP 400, MP 500, MP 600, MP 700, MP 7000 |
| Midmark > Cardell | 9403, 9404, 9405 |
| Mindray > Datascope | PM 7000, PM 8000, PM 9000, PM 9000 Express, Passport 2, Passport XG, Spectrum, Spectrum OR, Trio, VS 800 |
| Nihon Kohden | BSM-2300 Life Scope I, BSM-4100 Life Scope P, BSM-5100 Life Scope A, BSM-6701A, BSM-9510 Life Scope M, BSM-9800 Life Scope S |
| Philips | Tempus Pro |
| Smiths Medical > BCI | SurgiVet |
| Spacelabs | 93300 eLance Series |
| Stryker > Gaymar | Medi-Therm III |
| Welch Allyn | Atlas, Propaq CS |
| YSI | 400 Series |
| Zoll | X Series |
4.Specification
| Connector | Mono Plug Connector |
| Cable material | medical PVC |
| Cable diameter | 3.0 mm |
| Patient end | Rectangular 2 Pin |
| Latex Free | Yes |
| Resistor | NTC |
| Cable length | 3M |
| Certificate | ISO13485,CE |
| Package | 1 pc in bag |
| Warranty | 6 month for free |
5.Advantage:
Patient type: Rectangular 2 Pin,
Machine side connector: Mono Plug connector;
Patient side: OD3.0 dial package probe;
Resistance:25℃＝2.252KΩ;
characteristic of Product: Compatible with rectugalur dual temp probe;
Monitoring site:Surface,axillary
Material of temperature sensor: PVC;
Advantage of temperature sensor: High-performance dual-shielding effection, special alloy wire conductor to increase 3 ~ 5 times life;
characteristic of pins: Gold-plated make anti-interference effective which be sure high-quality singnal transmittance;
Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 12 month, Non-human damage!

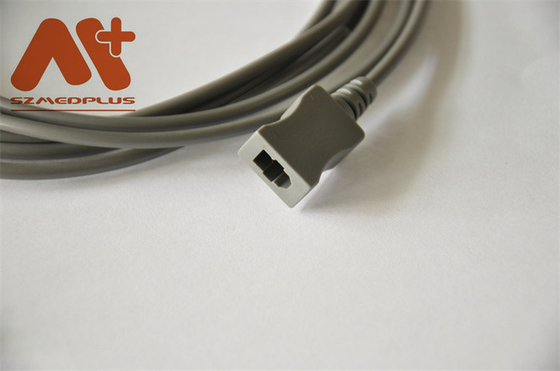

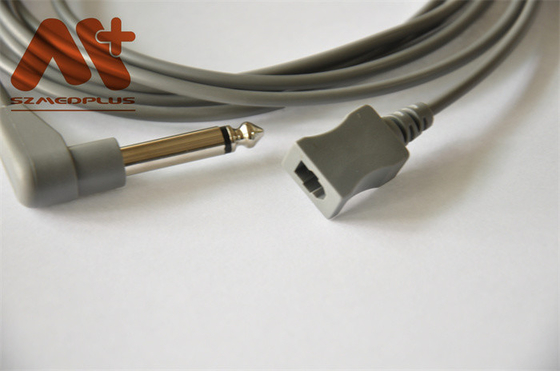

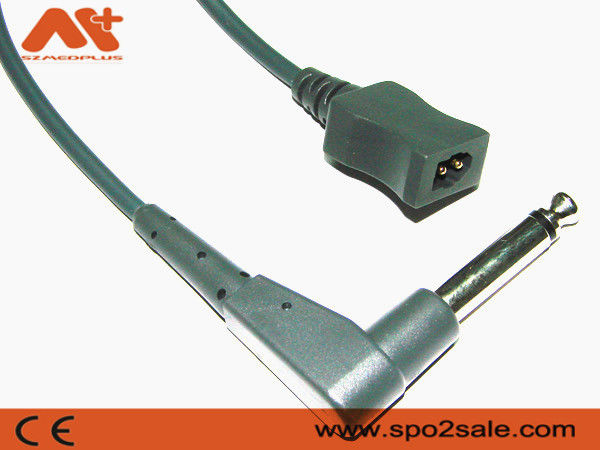

6.Image
