Product Details:
|
| Part: | MPT008C | Material: | PVC |
|---|---|---|---|
| Machine Connector: | 3Pin | Patient Side: | Pediatric Skin |
| Length: | 3M | Cable Diameter: | 3.0 Cable |
| Service: | OEM&ODM | Warranty: | 6 Month Repair For Free |
| Color: | Grey | Application: | Patient Monitor,pulse Oximeter |
| Shipping: | DHL/Fedex/UPS/TNT/EMS | ||
| High Light: | C-550 QT Air Shields Medical Temperature Probe,Isolette C100 Medical Temperature Probe,C-550 QT Pediatric Skin Temperature Probe |
||
1.Description:Air Shields Compatible Temperature Probe pediatric skin for C-550 QT, Isolette C100, Isolette C100 QT, Isolette
| P/N | Description | Connector Imagine | Probe side |
| MPT008A | Air Shield Adult skin Temperature Probe |  |  |
| MPT008B | Air Shield Adult Rectal Temperature Probe |  | |
| MPT008C | Air Shield Pediatric skin Temperature Probe |  | |
| MPT008D | Air Shield Pediatric Rectal Temperature Probe |  |
2.Compatibility:
| Manufacturer | Model |
|---|---|
| Draeger > Air Shields | C-550 QT, Isolette C100, Isolette C100 QT, Isolette C200, Isolette C450, Isolette C450 QT, Isolette C550, PM78 |
4.Specification
| Connector | 3Pin Connector |
| Cable material | medical PVC |
| Cable diameter | 3.0 mm |
| Patient end | Neonate skin |
| Latex Free | Yes |
| Resistor | NTC |
| Cable length | 3M |
| Certificate | ISO13485,CE |
| Package | 1 pc in bag |
| Warranty | 6 month for free |
5.Advantage:
Patient type: Adult,

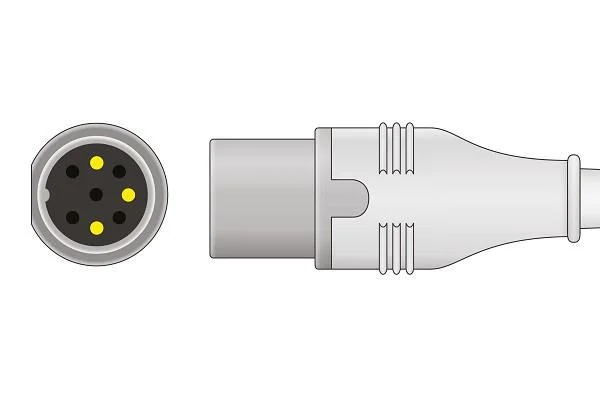

Machine side connector: 3Pin connector;
Patient side: OD3.0 dial package probe;
Resistance:25℃＝2.252KΩ;
characteristic of Product: Compatible with YSI 400 series;
Length: 3M
Monitoring site:Surface,axillary
Material of temperature sensor: PVC;
Advantage of temperature sensor: High-performance dual-shielding effection, special alloy wire conductor to increase 3 ~ 5 times life;
characteristic of pins: Gold-plated make anti-interference effective which be sure high-quality singnal transmittance;
Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 12 month, Non-human damage!

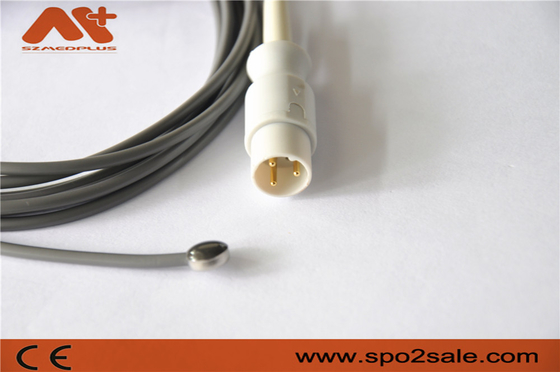

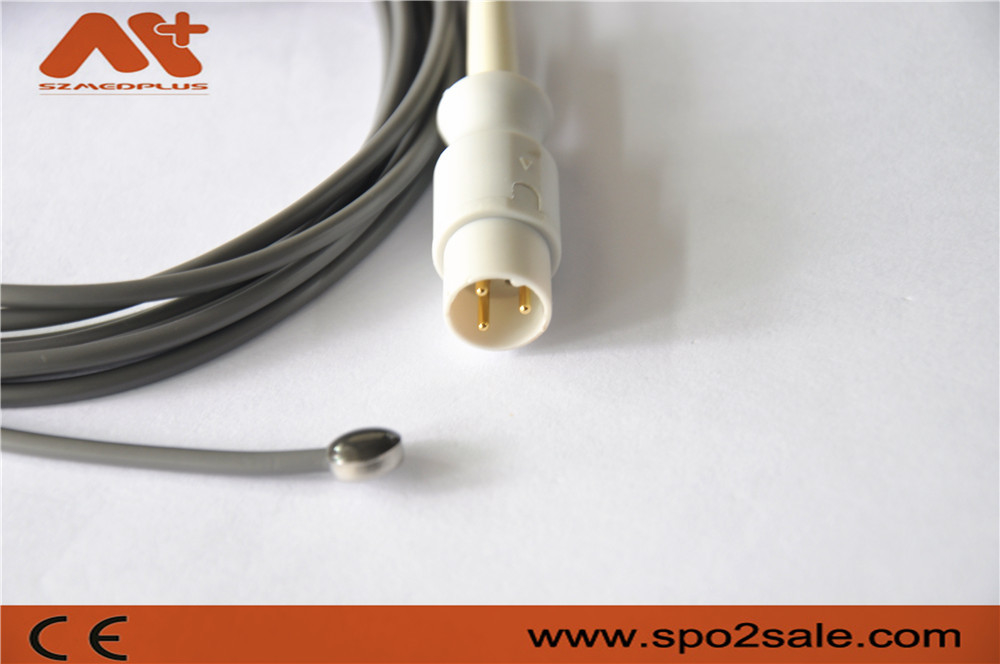

6.Image
