Product Details:
|
| OEM Part: | M1668A | Monitor Connector: | 12Pin |
|---|---|---|---|
| Patient End: | Din Mold Style | Length: | 2.5M |
| Lead: | 5 Lead | Application: | Philips 12Pin Patient Monitor |
| High Light: | 5 Lead ECG Patient Cable,ECG Patient Cable 12 Pin,12 Pin Philips M1668A |
||
1.Description: Philips Compatible 5 lead ECG Trunk Cable M1668A
2.OEM Part Number Cross References
| Manufacturer | OEM Part # |
|---|---|
| AMC | CB-73585R |
| Philips | M1668A, 989803145061, 989803170181 (Orange color ESU protection) |
| Sage | T01-05-30M |
3.Compatibility
| Manufacturer | Model |
|---|---|
| Newtech | NT3A |
| Nihon Kohden | NT3B, Omnicare CMA |
| Philips | 43100A, 43110A, 43120A, 78352C, 78354A/C, 78354C, 78834A/B/C, 78834C, 862472, 862473, 862474, 862474 C3, 862475, 862478, 862479, 863064, 863065, 863066, 863068, Affiniti 30, Affiniti 50, Affiniti 70, Affiniti CVx, Agilent, Agilent 50XM, C Series, C3, CX50, EPIQ, Envisor, HD11, HD15, HeartStart MRx, HeartStart XL, Heartstart, Heartstream, IE33, IntelliVue, IntelliVue MX800, M1001A, M1001B, M1002A, M1002B, M1165A, M1166A, M1167A, M1175A, M1177A, M1204A, M1205A, M1264A, M1275A Transport, M1276A, M1280A, M1722A, M1722B, M1723A, M1723B, M2, M2475B, M2601A, M3, M3000A, M3001A, M3002A MMS X2, M3535A, M3536A, M4, M4735A, M8102A MP2, M8105A MP5, MP 20, MP 30, MP 50, MP 60, MP 70, Merlin, SureSigns VM6, SureSigns VM8, V24, V24E, V26, Viridia, М3046А |
| Solaris | NT3C, NT3E, NT3F |
| Welch Allyn | 242, Propaq Encore 206EL |
4.Specification
| Connector | 12Pin |
| Cable material | medical TPU |
| Cable diameter | 5.0 mm |
| Patient end | Mold din style |
| Latex Free | Yes |
| Number of Leadwires | 5 lead |
| Standard | AHA |
| Certificate | ISO13485,CE |
| Package | 1 pc in bag |
| Warranty | 6 month for free |
5.Advantage:
-Monitor Conn.: 12Pin styple;
-Patient Conn.: Mold Din-Style;
-Specification of lead wires: 5 leads;
-Length of Probe: 2500MM ± 50MM；
-Color Standard of lead wires: AAMI-American color standard;
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 6 month, Non-human damage!

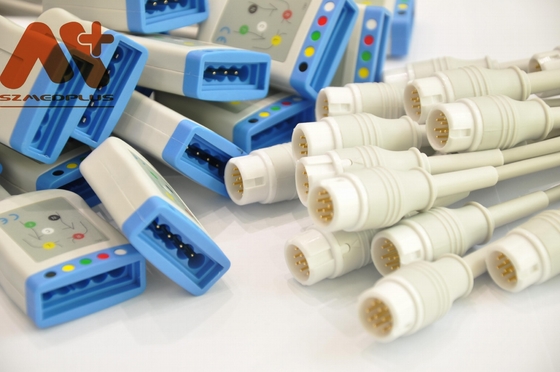

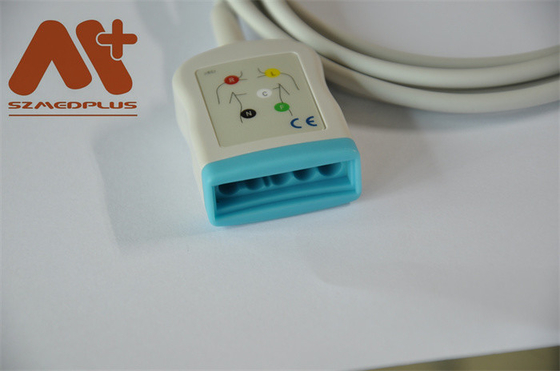

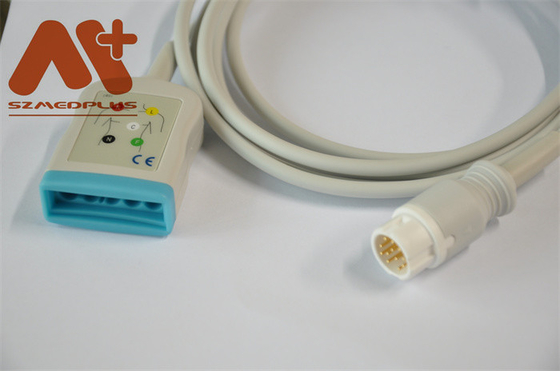

6.Image
