Product Details:
|
| OEM Part: | 21078A | Material: | PVC |
|---|---|---|---|
| Machine Connector: | 2Pin | Patient Side: | Adult Skin |
| Length: | 3M | Cable Diameter: | 3.0 Cable |
| Service: | OEM&ODM | Warranty: | 6 Month Repair For Free |
| Color: | Grey | Application: | Patient Monitor,pulse Oximeter |
| Shipping: | DHL/Fedex/UPS/TNT/EMS | ||
| High Light: | HP Medical Temperature Probe 21078A,M21078A Medical Temperature Probe,Adult Skin Temp Probe 989803100901 |
||
1.Description:OEM 21078A HP adult skin temperature probe, medical temperature probe cable for patient monitor
| P/N | Description | Connector Imagine | Probe side |
| MPT004A | Philips Adult skin Temperature Probe |  |
 |
| MPT004B | Philips Adult Rectal Temperature Probe |  |
|
| MPT004C | Philips Pediatric skin Temperature Probe |  |
|
| MPT004D | Philips Pediatric Rectal Temperature Probe |  |
2.OEM Part Number Cross References:
| Manufacturer | OEM Part # |
|---|---|
| Philips | 21078A, M21078A, 989803100901, 989803203581 |
| Sage | SSG-THP-AS |
3.Compatibility:
| Manufacturer | Model |
|---|---|
| Philips | IntelliVue MMS X2, IntelliVue MP2, IntelliVue MP30, IntelliVue MP70, IntelliVue MX400, IntelliVue MX800, M1029A, M3001A, M3001A A01C06, M3001A A01C18, M3001A A02C06, M3001A A02C18, M3001A A03C06, M3001A A03C18, M3001A A04C06, M3001A A04C18, MP 20, MP 30, MP 40, MP 50, MP 60, MP 70, MP 80, MP 90, SureSigns VM6, SureSigns VM8, VM6, VM8 |
| Welch Allyn | Propaq CS |
4.Specification
| Connector | 2Pin Connector |
| Cable material | medical PVC |
| Cable diameter | 3.0 mm |
| Patient end | Adult skin |
| Latex Free | Yes |
| Resistor | NTC |
| Cable length | 3M |
| Certificate | ISO13485,CE |
| Package | 1 pc in bag |
| Warranty | 6 month for free |
5.Advantage:
Patient type: Adult,
Machine side connector: 2Pin connector;
Patient side: OD3.0 dial package probe;
Resistance:25℃＝2.252KΩ;
characteristic of Product: Compatible with HP series;
Length: 3M
Monitoring site:Surface,axillary
Material of temperature sensor: PVC;
Advantage of temperature sensor: High-performance dual-shielding effection, special alloy wire conductor to increase 3 ~ 5 times life;
characteristic of pins: Gold-plated make anti-interference effective which be sure high-quality singnal transmittance;
Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 12 month, Non-human damage!

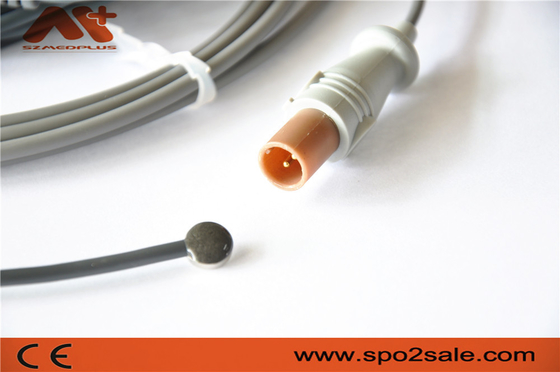

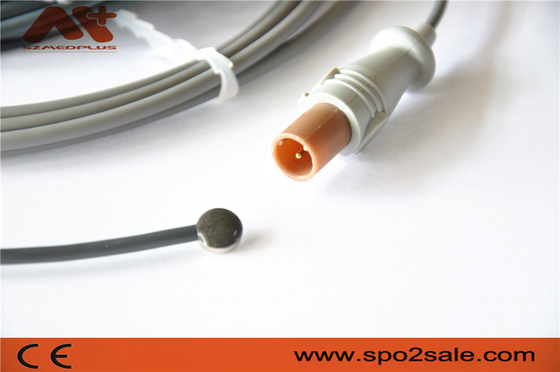

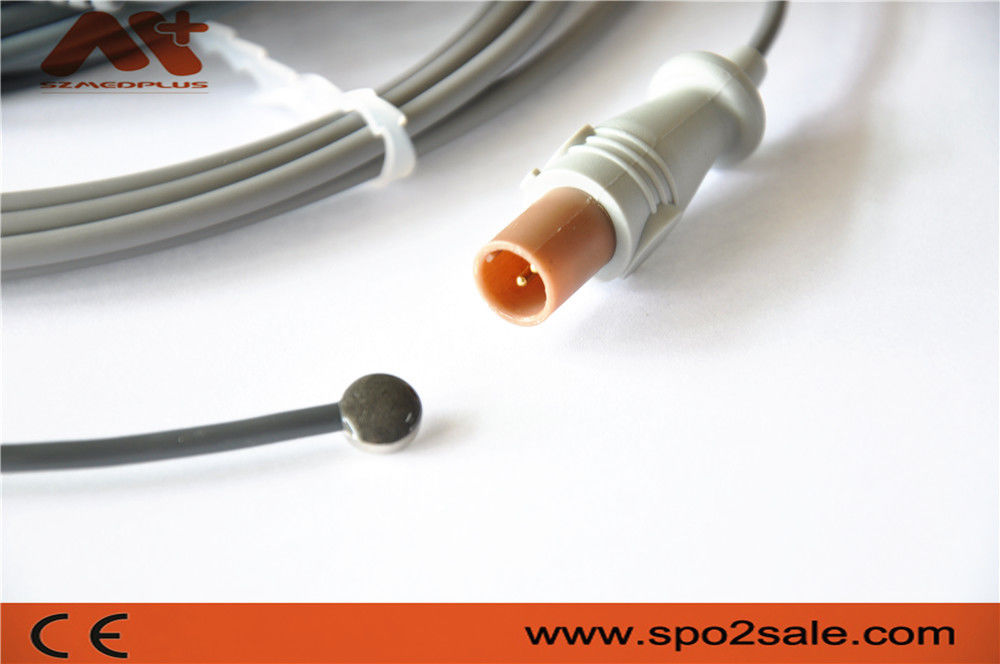

6.Image
