Product Details:
|
| OEM Part: | OXY-F4-H | Material: | Medical TPU |
|---|---|---|---|
| Patient End: | Adult Finger Clip | Connector: | Hypertronic 7Pin |
| Sensor Type: | Analog | Application: | Ohmeday Hypertronic 7Pin Patient Monitor |

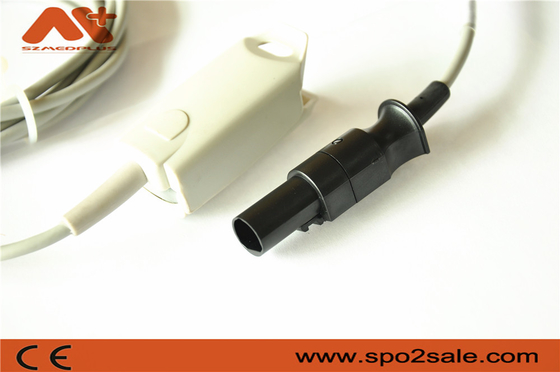

1.Description: Datex Ohmeda Compatible Adult Finger Clip Direct-Connect SpO2 Sensor - OXY-F4-H
2.OEM Part Number Cross References
| Manufacturer | OEM Part # |
|---|---|
| AMC | PR-A520-1017 |
| Beta Biomed | B505-1017 |
| Datex Ohmeda | OXY-F4-H, TS-F4-H (13 ft (4 meters)) |
| Envitec | F-3412 |
| Lohmeier | 6051-0000-035 |
| Pacific Medical | NFDX350 |
| Sage | P05-30M |
| Tenacore | TCPF-1612-0322, TP1812 |
3.Compatibility
| Manufacturer | Model |
|---|---|
| Datex Ohmeda | 3700, 3710, 3740, 3770, 3775, 37xx Series, 3800, 3900, 3900P, 4700, 5250 RGM, 5250 respiratory gas monitors, AS/3, Biox 3700e, Biox 3740, Biox 3760, CS/3, Cardiocap/5, Modular Monitors with M-OSAT module, Modulus CD, Oxicap, Rascal II, S/5, TuffSat, TuffSat 3775 |
| GE Healthcare > Corometrics | 200SL, 400SL, 511, 600SL, 800A, 800SL, TRAM A.R., TRAM x00SL Series |
| GE Healthcare > Marquette | 7000 Series |
| Mennen | Horizon XL800 (Ohmeda SpO2) |
4.Specification
| Connector type | 7Pin |
| Cable material | medical TPU |
| Cable diameter | 4.0 |
| Patient end | Adult Finger Clip |
| Latex Free | Yes |
| Sensor type | 660/905/940 |
| Cable length | 10ft |
| Certificate | ISO13485,CE |
| Application | Spo2 |
| Patient size | Adult |
| Emitting light wavelength | 660/905/940 | |
| Cable Material | TPU jacket, 4.0mm diameter | |
| Sensor Type | Pediatric | |
| Spo2 testing range | 70%-100% | |
| Storage and transport environment | -10°C~+40°C | |
| Operating temperature | 5°C-40°C | |
| Humidity | 0-80% | |
| Pressure | 86kpa-106kpa | |
| Accuracy | Spo2 | ±2%(90%-100%) |
| ±3%(70%-89%) | ||
| unspecified(0-69%) | ||
| Pulse rate | ±1 bpm(30-59bpm) | |
| ±2 bpm(60-149bmp) | ||
| ±3 bpm(150-245bmp) | ||
5.Image
