Product Details:
|
| OEM Part: | 8791-00 | Patient End: | Neonate Y |
|---|---|---|---|
| Connector: | Hypertronic 7Pin | Length: | 10ft |
| Sensor Type: | Analog | Application: | Novametrix 7Pin Patient Monitor |
1.Description: Novametrix Compatible Multi Site Y Type Direct-Connect SpO2 Sensor - 8791-00
2.OEM Part Number Cross References
| Manufacturer | OEM Part # |
|---|---|
| AMC | PR-A320-1016 (6 pin), PR-A220-1016 (Ear Clip), PR-A320-1015 |
| Novametrix | 8791-00 |
| Tenacore | TY3732Y12, TCPY-1917-0322 |
3.Compatibility
| Manufacturer | Model |
|---|---|
| Nico | Cardiopulmonary |
| Novametrix | 2001, 500, 505, 510, 511, 515, 515A, 515B, 515C, 520, 520A, 7000, 7100, 7200, 7300, Oxypleth |
| Spacelabs | 90351-D/G, 90369, 90419-01, 9046, 90466, 90467, 90489, 90603A, 90651-07/08, 90651A, 90651A-07 |
4.Specification
| Connector type | Hypertronic 7Pin |
| Cable material | medical TPU |
| Cable diameter | 4.0 |
| Patient end | Neonate Y |
| Latex Free | Yes |
| Sensor type | 660/940-3 |
| Cable length | 10ft |
| Certificate | ISO13485,CE |
| Application | Spo2 |
| Patient size | Adult |
| Emitting light wavelength | 660/940-3 | |
| Cable Material | TPU jacket, 4.0mm diameter | |
| Sensor Type | Adult | |
| Spo2 testing range | 70%-100% | |
| Storage and transport environment | -10°C~+40°C | |
| Operating temperature | 5°C-40°C | |
| Humidity | 0-80% | |
| Pressure | 86kpa-106kpa | |
| Accuracy | Spo2 | ±2%(90%-100%) |
| ±3%(70%-89%) | ||
| unspecified(0-69%) | ||
| Pulse rate | ±1 bpm(30-59bpm) | |
| ±2 bpm(60-149bmp) | ||
| ±3 bpm(150-245bmp) | ||

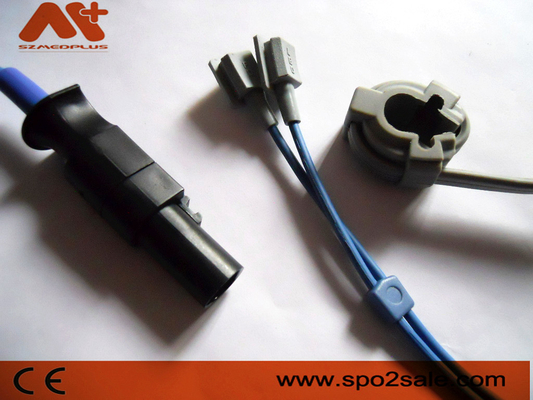

5.Image
