Product Details:
|
| OEM Part: | TL-101S | Patient End: | Adult Finger Clip |
|---|---|---|---|
| Connector: | 10Pin | Length: | 10ft |
| Sensor Type: | Analog | Application: | Nihon Kohden 10Pin Patient Monitor |
1.Description: Nihon Kohden Compatible Adult Finger Clip Direct-Connect SpO2 Sensor - TL-101S
2.OEM Part Number Cross References
| Manufacturer | OEM Part # |
|---|---|
| AMC | PR-A120-1013 (Small Finger), PR-A520-1013 |
| Nihon Kohden | TL-101S |
| Sage | P07-30M |
3.Compatibility
| Manufacturer | Model |
|---|---|
| Nihon Kohden | AL-800PA Module, BSM-1101 Life Scope EC, BSM-2101/2 Life Scope L, BSM-3101 Life Scope LC, BSM-7100/7200 Life Scope 8, BSM-8200/1 Life Scope 12, BSM-8301/2 Life Scope 9, NT3B, OLV-1100A, SM-8800 Life Scope 14 |
4.Specification
| Connector type | 10Pin |
| Cable material | medical TPU |
| Cable diameter | 4.0 |
| Patient end | Adult Finger Clip |
| Latex Free | Yes |
| Sensor type | 660/940-3 |
| Cable length | 10ft |
| Certificate | ISO13485,CE |
| Application | Spo2 |
| Patient size | Adult |
| Emitting light wavelength | 660/940-3 | |
| Cable Material | TPU jacket, 4.0mm diameter | |
| Sensor Type | Adult | |
| Spo2 testing range | 70%-100% | |
| Storage and transport environment | -10°C~+40°C | |
| Operating temperature | 5°C-40°C | |
| Humidity | 0-80% | |
| Pressure | 86kpa-106kpa | |
| Accuracy | Spo2 | ±2%(90%-100%) |
| ±3%(70%-89%) | ||
| unspecified(0-69%) | ||
| Pulse rate | ±1 bpm(30-59bpm) | |
| ±2 bpm(60-149bmp) | ||
| ±3 bpm(150-245bmp) | ||

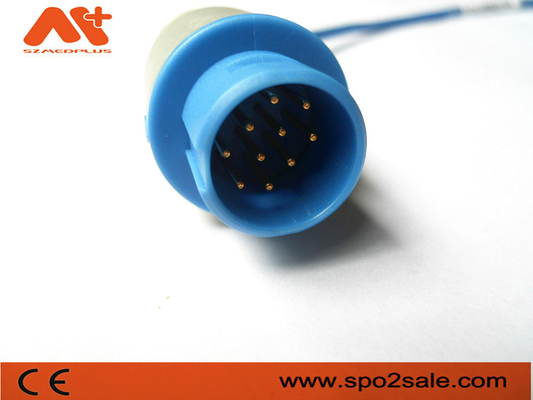

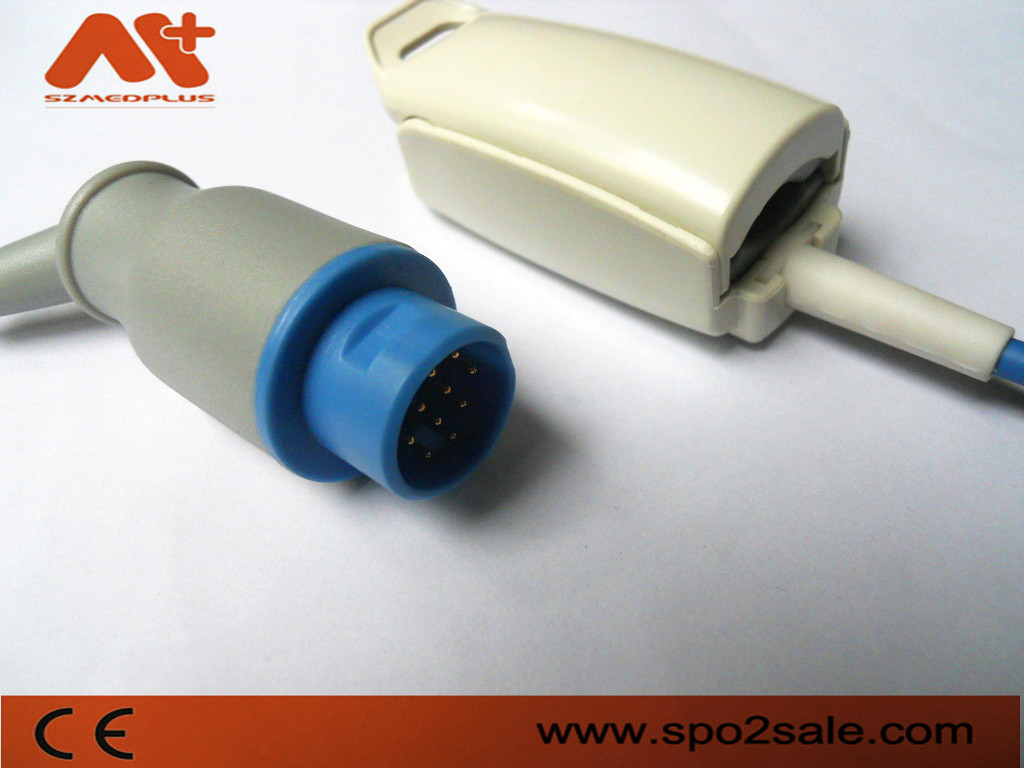

5.Image
