Product Details:
|
| OEM Part: | TCPS-2014-0322 | Patient End: | Adult Soft Tip |
|---|---|---|---|
| Connector: | 10Pin | Length: | 10ft |
| Sensor Wavelength: | 660/905 | Application: | Datex 10Pin Patient Monitor |
1.Description: Datex Ohmeda Compatible Adult Soft Tip Direct-Connect SpO2 Sensor - TCPS-2014-0322
2.OEM Part Number Cross References
| Manufacturer | OEM Part # |
|---|---|
| AMC | PR-A900-1005 |
| Tenacore | TCPS-2014-0322, TP2422SP |
3.Compatibility
| Manufacturer | Model |
|---|---|
| Datex Ohmeda | AS/3, AS/3 Compact, Aespire, Aespire 15, CG/2S, CH-RS, CH/2S, CH/S, CS/3, CS/5, CS/5 Compact, Capnomac Ultima, Cardiocap I, Cardiocap II, Cardiocap/5, Light Monitor, M-ESTP, M-ESTPR, M-NESTPR, M-PRESTN, OSP-200, Oscar II, Satellite, Satellite Plus II, Satellite Trans, System 5, Trans Plus, ULTS00, ULTSIO, ULTSVI, ULTSVO |
4.Specification
| Connector type | 10Pin |
| Cable material | medical TPU |
| Cable diameter | 4.0 |
| Patient end | Adult Soft Tip |
| Latex Free | Yes |
| Wavelength | 660/905 |
| Cable length | 10ft |
| Certificate | ISO13485,CE |
| Application | Spo2 |
| Patient size | Adult |
| Emitting light wavelength | 660/905-2 | |
| Cable Material | TPU jacket, 4.0mm diameter | |
| Sensor Type | Adult | |
| Spo2 testing range | 70%-100% | |
| Storage and transport environment | -10°C~+40°C | |
| Operating temperature | 5°C-40°C | |
| Humidity | 0-80% | |
| Pressure | 86kpa-106kpa | |
| Accuracy | Spo2 | ±2%(90%-100%) |
| ±3%(70%-89%) | ||
| unspecified(0-69%) | ||
| Pulse rate | ±1 bpm(30-59bpm) | |
| ±2 bpm(60-149bmp) | ||
| ±3 bpm(150-245bmp) | ||

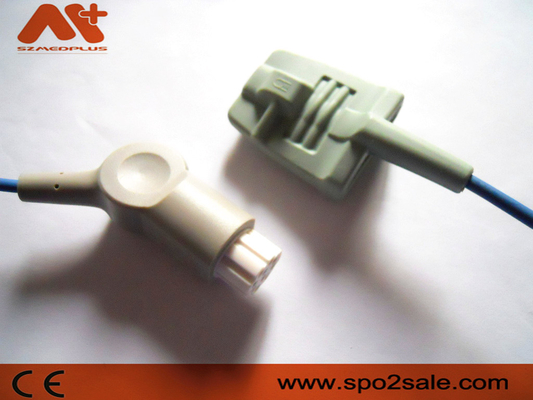

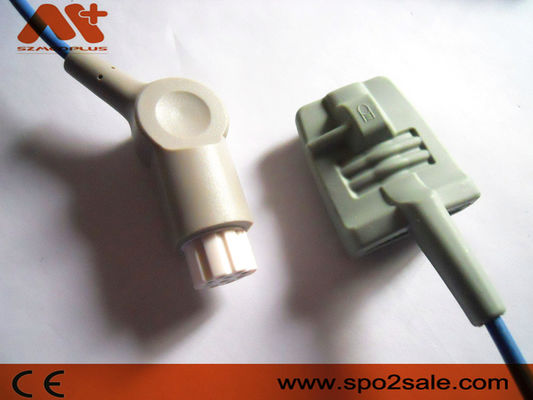

5.Image
