Product Details:
|
| Model: | Primedic XD30 | Machine Connector: | 3Pin |
|---|---|---|---|
| Patient End: | Clip | Length: | 3.5M |
| Lead: | 3 Lead | Application: | Primedic XD30 |
| High Light: | Primedic XD30 3 Lead Wire,3 Lead Wire 3 Pin IEC,IEC Ecg Cable Connectors |
||
1.Description: Primedic XD30 ECG cable with 3 lead lead wires
2.Compatibility
| Manufacturer | Model |
|---|---|
| Primedic | XD30 |
3.Specification
| Connector | 3Pin |
| Cable material | medical TPU |
| Cable diameter | 5.0+2.6mm |
| Patient end | Clip |
| Latex Free | Yes |
| Number of Leadwires | 3 lead |
| Standard | IEC |
| Certificate | ISO13485,CE |
| Package | 1 pc in bag |
| Warranty | 6 month for free |
| Category | ECG |
| Instrument connector | 3pin male |
| Trunk cable length | 250cm |
| Patient leadwires | 100cm |
| Patient end termination | IEC: 3-lead/5-lead, snap/clip |
| AHA: 3-lead/5-lead, snap/clip | |
| Resistor | 1K Resistance |
| Operating Temperature | 0°C~+40°C (32 to 104°F) |
| Humidity | Operating/Storage/Transportation 0% to 80% non condensing Altitude Hyperbaric Pressure 86kPa - 106kPa |
4.Advantage:
-Monitor Conn.: 3Pin;
-Patient Conn.: Clip-Style;
-Specification of lead wires: 3 leads;
-Length of Probe: 3400MM ± 50MM；
-Color Standard of lead wires: AAMI-American color standard;
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 6 month, Non-human damage!

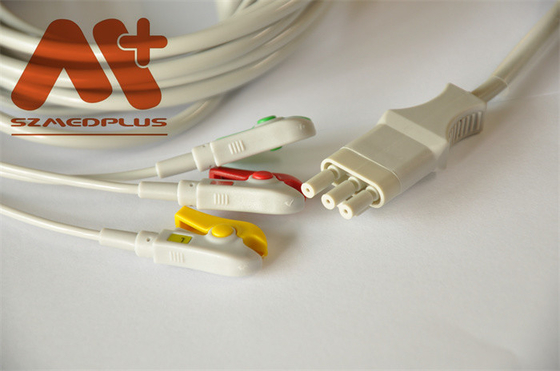

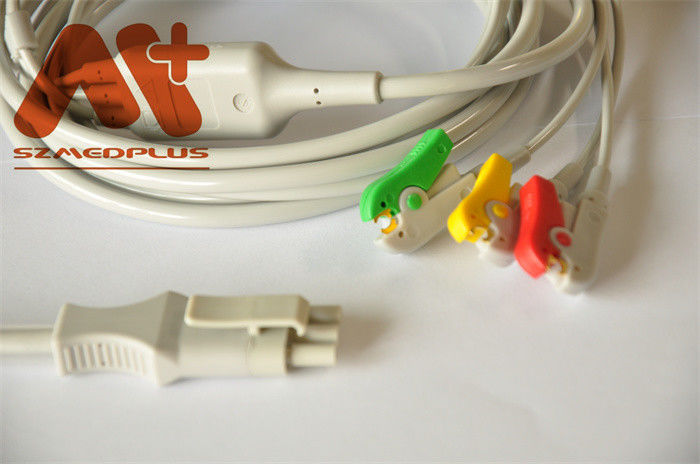

5.Image
