Product Details:
|
| Model: | OEC Sery,TEC Sery | Machine Connector: | 11Pin |
|---|---|---|---|
| Patient End: | Clip | Cable Diameter: | 5.0+2.6 Cable |
| Lead: | 5 Lead | Application: | Nihon Kohden OEC Sery,TEC Sery |
| High Light: | 11Pin Ecg Machine Cable,Ecg Machine Cable Nihon Kohden,5 Lead Clip ECG Lead Wire |
||
1.Description: Nihon Kohden 11 Pin Compatible 5 Lead Clip Direct-Connect ECG Cable
2.Compatibility
| Manufacturer | Model |
|---|---|
| Nihon Kohden | OEC-6102A (s/n<20156), OEC-6105A (s/n<20226), OEC-6120A, OEC-6120J, OEC-6120K, TEC-7621C, TEC-7631C, TEC-7721C, TEC-7731C, TEC-7731K, TEC-7700, Cardiolife Bifasic Defibrillator |
3.Specification
| Connector | 11Pin |
| Cable material | medical TPU |
| Cable diameter | 5.0+2.6mm |
| Patient end | Clip |
| Latex Free | Yes |
| Number of Leadwires | 5 lead |
| Standard | AHA |
| Certificate | ISO13485,CE |
| Package | 1 pc in bag |
| Warranty | 6 month for free |
| Category | ECG |
| Instrument connector | 11pin male |
| Trunk cable length | 250cm |
| Patient leadwires | 100cm |
| Patient end termination | IEC: 3-lead/5-lead, snap/clip |
| AHA: 3-lead/5-lead, snap/clip | |
| Resistor | 1K Resistance |
| Operating Temperature | 0°C~+40°C (32 to 104°F) |
| Humidity | Operating/Storage/Transportation 0% to 80% non condensing Altitude Hyperbaric Pressure 86kPa - 106kPa |
4.Advantage:
-Monitor Conn.: 11Pin;
-Patient Conn.: Clip-Style;
-Specification of lead wires: 5 leads;
-Length of Probe: 3400MM ± 50MM；
-Color Standard of lead wires: AAMI-American color standard;
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 6 month, Non-human damage!

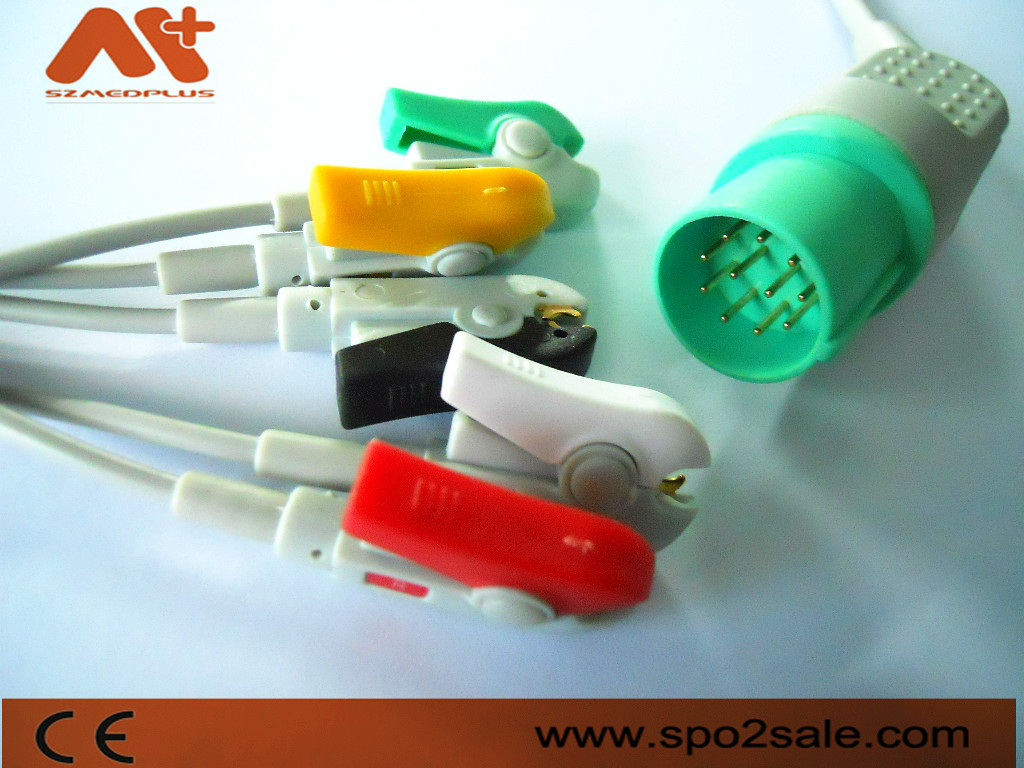

5.Image
