Product Details:
|
| Model: | Sirecust Sery | Machine Connector: | 10Pin |
|---|---|---|---|
| Patient End: | Clip | Cable Diameter: | 5.0+2.6 Cable |
| Lead: | 5 Lead | Application: | Sirecust Sery |
| High Light: | Sirecust Sery Siemens 10 Pin Cable,Sirecust Sery 5 Lead ECG Cable,5 Lead ECG Cable Clip |
||
1.Description: Siemens 10 Pin Compatible 5 Lead Clip Direct-Connect ECG Cable
2.Compatibility
| Manufacturer | Model |
|---|---|
| Siemens | Polymed, Sirecust 1200, Sirecust 1260, Sirecust 1281, Sirecust 1801, Sirecust 341, Sirecust 400, Sirecust 500, Sirecust 600, Sirecust 610, Sirecust 620, Sirecust 630, Sirecust 700, Sirecust 720, Sirecust 722, Sirecust 730, Sirecust 732, Sirecust 900, Sirecust 960, Sirecust 961, Sirem |
3.Specificatio
| Connector | 10Pin |
| Cable material | medical TPU |
| Cable diameter | 5.0+2.6mm |
| Patient end | Clip |
| Latex Free | Yes |
| Number of Leadwires | 5 lead |
| Standard | AHA |
| Certificate | ISO13485,CE |
| Package | 1 pc in bag |
| Warranty | 6 month for free |
| Category | ECG |
| Instrument connector | 10pin male |
| Trunk cable length | 250cm |
| Patient leadwires | 100cm |
| Patient end termination | IEC: 3-lead/5-lead, snap/clip |
| AHA: 3-lead/5-lead, snap/clip | |
| Resistor | 1K Resistance |
| Operating Temperature | 0°C~+40°C (32 to 104°F) |
| Humidity | Operating/Storage/Transportation 0% to 80% non condensing Altitude Hyperbaric Pressure 86kPa - 106kPa |
4.Advantage:
-Monitor Conn.: 10Pin;
-Patient Conn.: Clip-Style;
-Specification of lead wires: 5 leads;
-Length of Probe: 3400MM ± 50MM；
-Color Standard of lead wires: AAMI-American color standard;
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 6 month, Non-human damage!

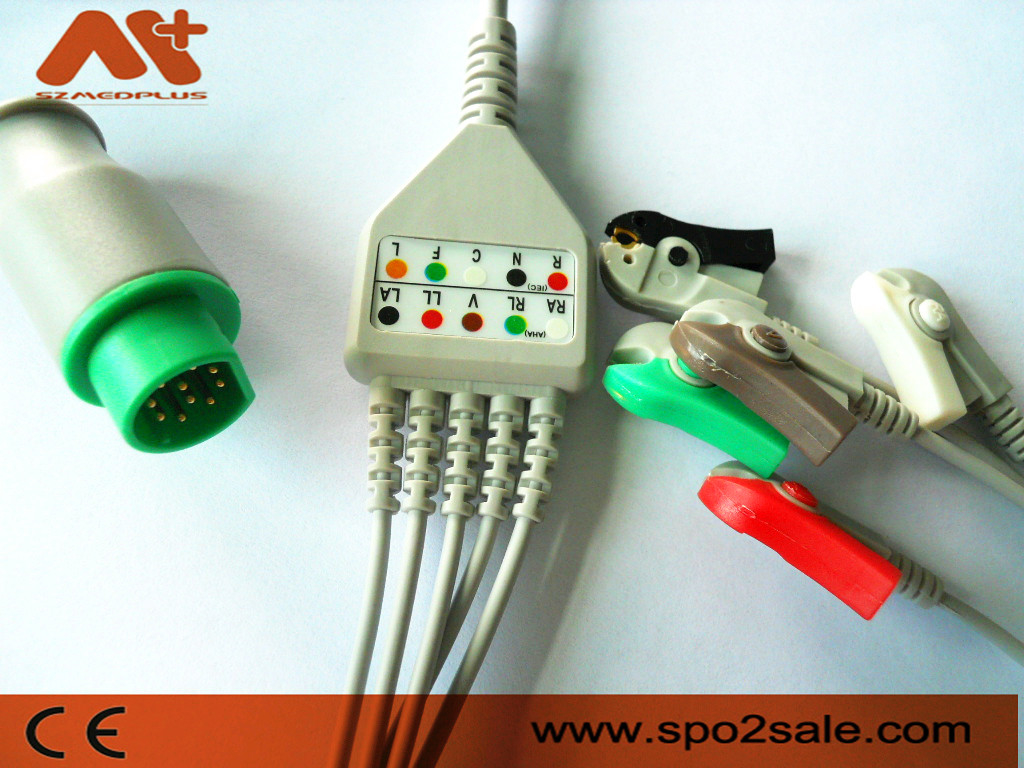

5.Image
