Product Details:
|
| Model: | CB-72596R | Material: | Medical TPU |
|---|---|---|---|
| Machine Connector: | 17Pin | Patient End: | Snap |
| Length: | 3.5M | Cable Diameter: | 5.0+2.6 Cable |
| Lead: | 5 Lead | Application: | Spacelabs Ultraview 17Pin Patient Monitor |

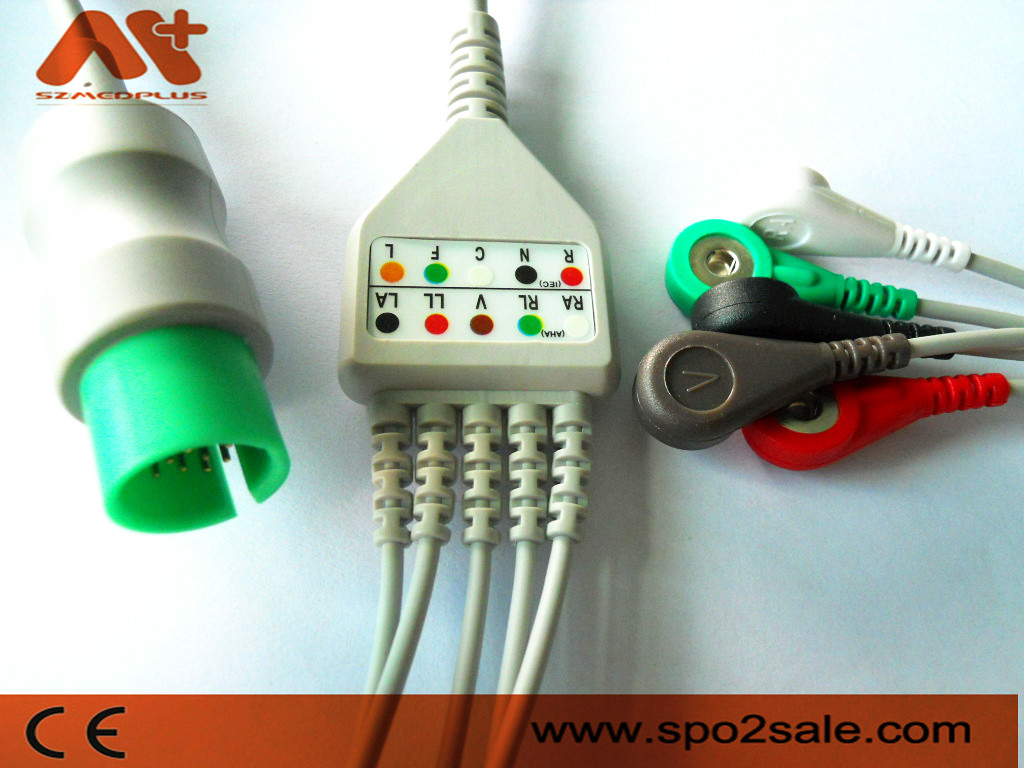

1.Description: Spacelabs Compatible 5 Lead Snap Direct-Connect ECG Cable - CB-72596R
2.OEM Part No
| Manufacturer | OEM Part # |
|---|---|
| AMC | CB-72596R |
| Curbell | CBM-05MA-10AS-0021 |
| Sage | A03-05MS |
3.Compatibility
| Manufacturer | Model |
|---|---|
| Spacelabs | 90309, 90367 Ultraview, 90369 Ultraview, 90496 Ultraview, 91220 mCare 300, 91369, 93300, Elance Series, Ultraview SL, 90367, 90369, 90492, 90496, 91496, Ultraview |
3.Specification
| Connector | 17Pin |
| Cable material | medical TPU |
| Cable diameter | 5.0+2.6mm |
| Patient end | Snap |
| Latex Free | Yes |
| Number of Leadwires | 5 lead |
| Standard | AHA |
| Certificate | ISO13485,CE |
| Package | 1 pc in bag |
| Warranty | 6 month for free |
| Category | ECG |
| Instrument connector | 17pin male |
| Trunk cable length | 250cm |
| Patient leadwires | 100cm |
| Patient end termination | IEC: 3-lead/5-lead, snap/clip |
| AHA: 3-lead/5-lead, snap/clip | |
| Resistor | 1K Resistance |
| Operating Temperature | 0°C~+40°C (32 to 104°F) |
| Humidity | Operating/Storage/Transportation 0% to 80% non condensing Altitude Hyperbaric Pressure 86kPa - 106kPa |
5.Advantage:
-Monitor Conn.: 17Pin;
-Patient Conn.: Snap-Style;
-Specification of lead wires: 5 leads;
-Length of Probe: 3400MM ± 50MM；
-Color Standard of lead wires: AAMI-American color standard;
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 12 month, Non-human damage!
6.Image
