Product Details:
|
| Model: | BM3, BM3VET | Material: | Medical TPU |
|---|---|---|---|
| Machine Connector: | 8Pin | Patient End: | Snap |
| Length: | 3.5M | Cable Diameter: | 5.0+2.6 Cable |
| Lead: | 3 Lead | Application: | Bionet BM3, BM3VET |
| Highlight: | M3VET Patient Monitor Cables,Bionet BM3 Patient Monitor Cables,ECG 3 Lead Cable TPU |
||
1.Description: Bionet BM3, BM3VET Compatible 3 Lead Snap Direct-Connect ECG Cable
2.Compatibility
| Manufacturer | Model |
|---|---|
| Bionet | BM3, BM3VET |
3.Specification
| Connector | 8Pin |
| Cable material | medical TPU |
| Cable diameter | 5.0+2.6mm |
| Patient end | Snap |
| Latex Free | Yes |
| Number of Leadwires | 3 lead |
| Standard | AHA |
| Certificate | ISO13485,CE |
| Package | 1 pc in bag |
| Warranty | 6 month for free |
| Category | ECG |
| Instrument connector | 8pin male |
| Trunk cable length | 250cm |
| Patient leadwires | 100cm |
| Patient end termination | IEC: 3-lead/5-lead, snap/clip |
| AHA: 3-lead/5-lead, snap/clip | |
| Resistor | 1K Resistance |
| Operating Temperature | 0°C~+40°C (32 to 104°F) |
| Humidity | Operating/Storage/Transportation 0% to 80% non condensing Altitude Hyperbaric Pressure 86kPa - 106kPa |
5.Advantage:
-Monitor Conn.: 8Pin;
-Patient Conn.: Clip-Style;
-Specification of lead wires: 3 leads;
-Length of Probe: 3400MM ± 50MM；
-Color Standard of lead wires: AAMI-American color standard;
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 12 month, Non-human damage!

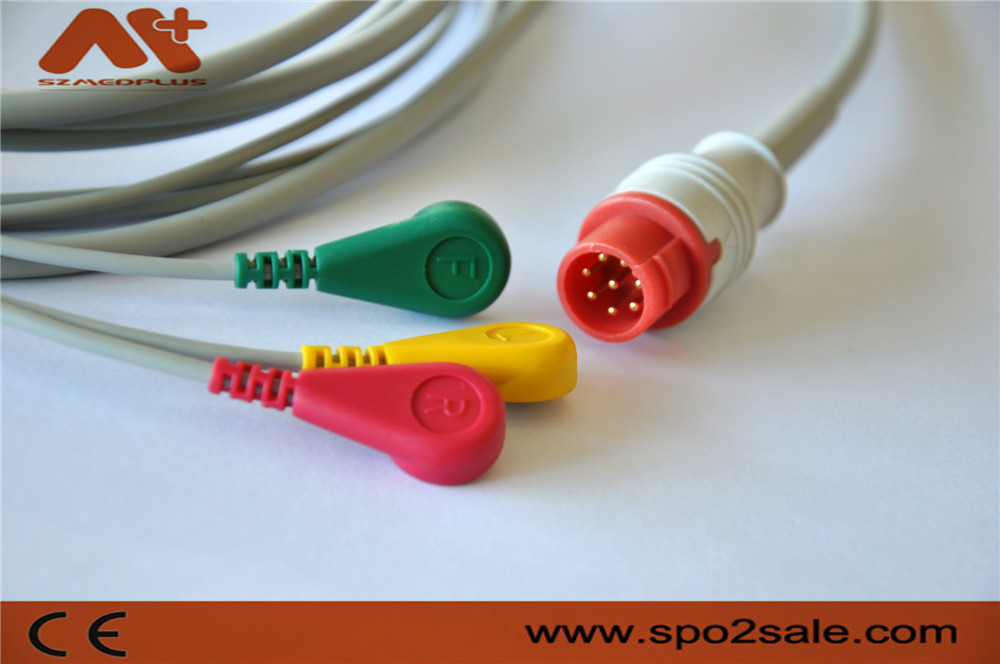

6.Image
