Product Details:
|
| OEM Part: | 115-004869-00 | Patient Connector: | Din Style Connector |
|---|---|---|---|
| Patient End: | AHA Snap | Length: | 3ft |
| Lead: | 5 Lead | Application: | Tel-100, TMS-6016 |
1.Description: Mindray > Datascope Compatible 5 Lead snap ECG Telemetry Leadwire - 115-004869-00
2.OEM Part Number Cross References
| Manufacturer | OEM Part # |
|---|---|
| Mindray > Datascope | 115-004869-00 |
3.Compatibility
| Manufacturer | Model |
|---|---|
| Mindray > Datascope | Tel-100, TMS-6016 |
4.Specification
| Patient Connector | Din style |
| Cable material | medical TPU |
| Cable diameter | 2.6 mm |
| Patient end | Snap |
| Latex Free | Yes |
| Number of Leadwires | 5 lead |
| Standard | AHA |
| Certificate | ISO13485,CE |
| Package | 1 pc in bag |
| Warranty | 6 month for free |
5.Advantage:
-Patient Conn.: Din style styple;
-Patient Conn.: Snap-Style;
-Specification of lead wires: 5 leads;
-Length of Probe: 1000MM ± 50MM；
-Color Standard of lead wires: AAMI-American color standard;
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 6 month, Non-human damage!

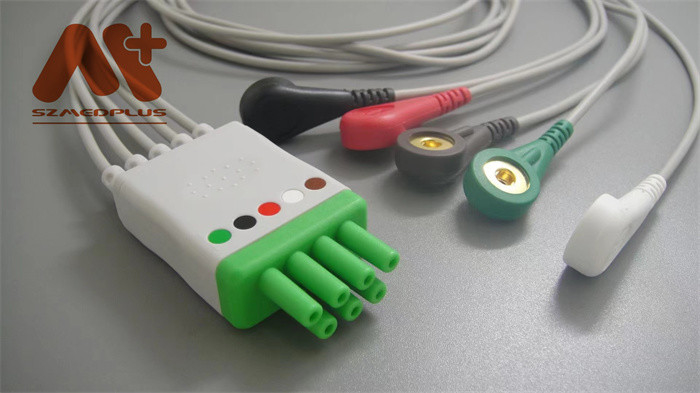

6.Image
