Product Details:
|
| OEM Part: | OXY-C3 | Material: | Medical TPU |
|---|---|---|---|
| Patient End: | DB9Pin | Monitor Connector: | Datex 10Pin |
| Length: | 2.4M | Package: | 1 Pc In Bag |
| Warranty: | 6 Month Repair For Free | Application: | Datex Patient Monitor |

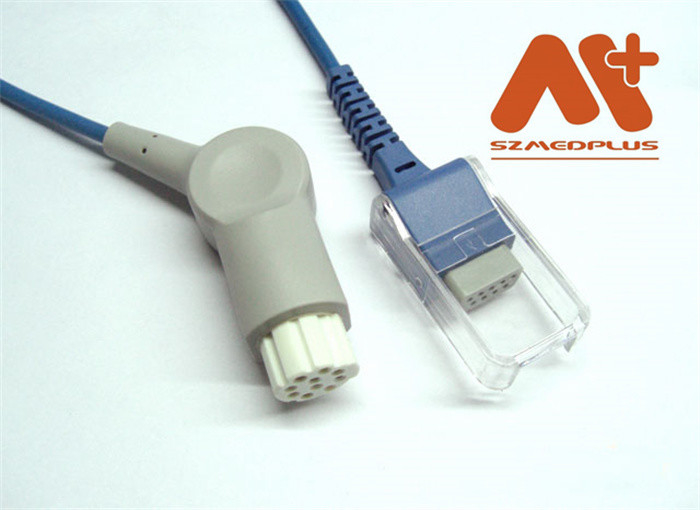

1.Description:Datex Ohmeda Compatible SpO2 Adapter Cable - OXY-C3
| P/N | Description | Instrument connector | Sensor side connector | |
| MPE006A | 10P-DB9F For Datex Pobe |  |
 |
|
2.OEM Part Number Cross References
| Manufacturer | OEM Part # |
|---|---|
| AMC | CB-A400-1005A |
| Beta Biomed | B400-1005A |
| Datex Ohmeda | OXY-C3 (10 ft (3 meters)) |
| Pacific Medical | NXDX100 |
| Sage | E05-22M |
| Tenacore | TE2433 |
3.Compatibility
| Manufacturer | Model |
|---|---|
| Datex Ohmeda | AS/3, CS/3, Capnomac Ultima, Cardiocap S/5 Light Monitor, Cardiocap/5, M-NESTPR, S/5, Satellite Plus II |
4.Specification

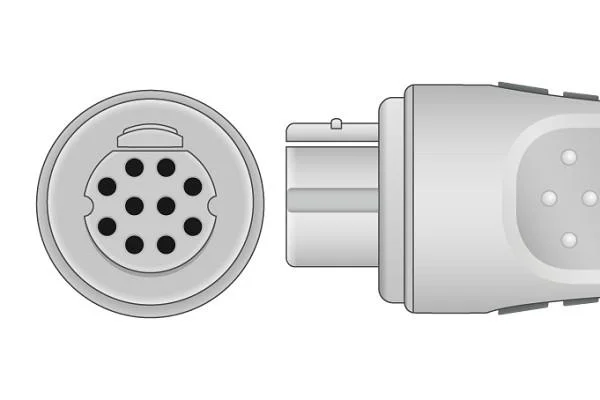

| Connector type | Round 10Pin |
| Cable material | medical TPU |
| Cable diameter | 4.0 cable |
| Patient end | DB9 Pin |
| Latex Free | Yes |
| OEM&ODM Service | Yes |
| Cable length | 2.4M |
| Certificate | ISO13485,CE |
| Application | extend Spo2 sensor |
| Package | 1 piece in bag |
5.Advantage:
-Mainly used in.: Datex SpO2 Probe;
-Monitor Conn.: Round 10Pin;
-Patient Conn. No.:DB9pin;
-Length of Probe: 2400MM ± 50MM；
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.

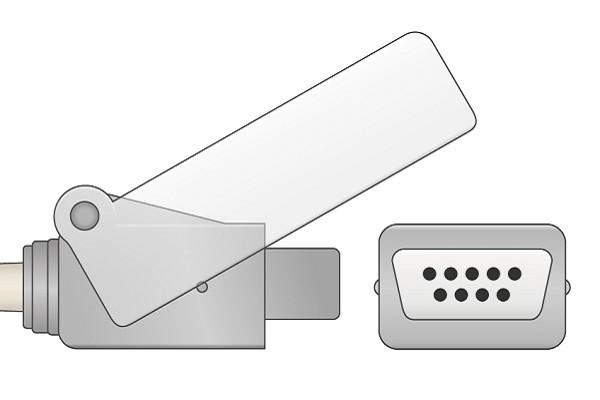

-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 6 month, Non-human damage!
6.Image
