Product Details:
|
| OEM Part: | M1943NL | Material: | Medical TPU |
|---|---|---|---|
| Patient End: | 8pin | Monitor Connector: | DB9Pin |
| Length: | 2.4M | Package: | 1 Pc In Bag |
| Warranty: | 6 Month Repair For Free | Application: | HP 8pin Patient Monitor |
| High Light: | DB9 SpO2 Adapter Cable,Oximax SpO2 Adapter Cable,Philips M1943NL Medical TPU |
||
1.Description:Philips Compatible SpO2 Adapter Cable - M1943NL
| P/N | Description | Instrument connector | Sensor side connector |
| MPE021E | HP8P-DB9F, For Nellcor Oximax |
 |
 |
2.OEM Part Number Cross References
| Manufacturer | OEM Part # |
|---|---|
| AMC | CB-A400-1006NL |
| Pacific Medical | NXPH300 |
| Philips | M1943NL, 989803136591 |
| Sage | E01X-30M |
| Tenacore | TCEO-0114-1021, TE1516 |
3.Compatibility
| Manufacturer | Model |
|---|---|
| Philips | Heartstream XL, IntelliVue, IntelliVue FAST-SpO2, IntelliVue MP2, IntelliVue MP70, IntelliVue MX450, M1020B, M2601A, M3000A, M3001A, M3001A A02, M3001A A02C06, M3001A A02C12, M3001A A02C18, M3001A A04, M3001A A04C06, M3001A A04C12, M3001A A04C18, M3002A, M3002A MMS X2, M3500B, M4735A, M8102A, M8102A MP2, M8105A MP5, M8105AS, MP 30, SureSigns VS2, SureSigns VS3, SureSigns VS4, VM4 |
4.Specification
| Connector type | 8Pin |
| Cable material | medical TPU |
| Cable diameter | 4.0 cable |
| Patient end | DB9 Pin |
| Latex Free | Yes |
| OEM&ODM Service | Yes |
| Cable length | 2.4M |
| Certificate | ISO13485,CE |
| Application | extend Spo2 sensor |
| Package | 1 piece in bag |
5.Advantage:
-Mainly used in.: Nellcor Oximax SpO2 Probe;
-Monitor Conn.: 8Pin;
-Patient Conn. No.:DB9pin;
-Length of Probe: 2400MM ± 50MM；
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 6 month, Non-human damage!

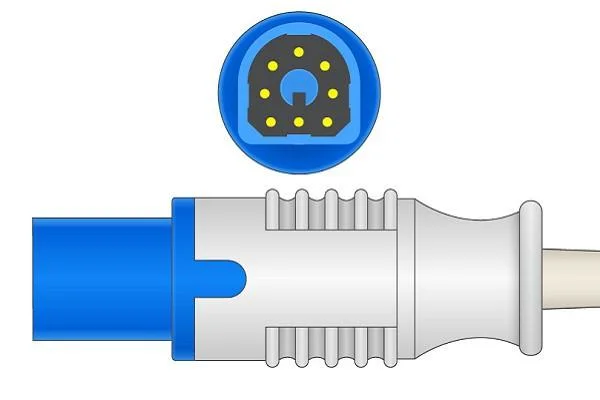

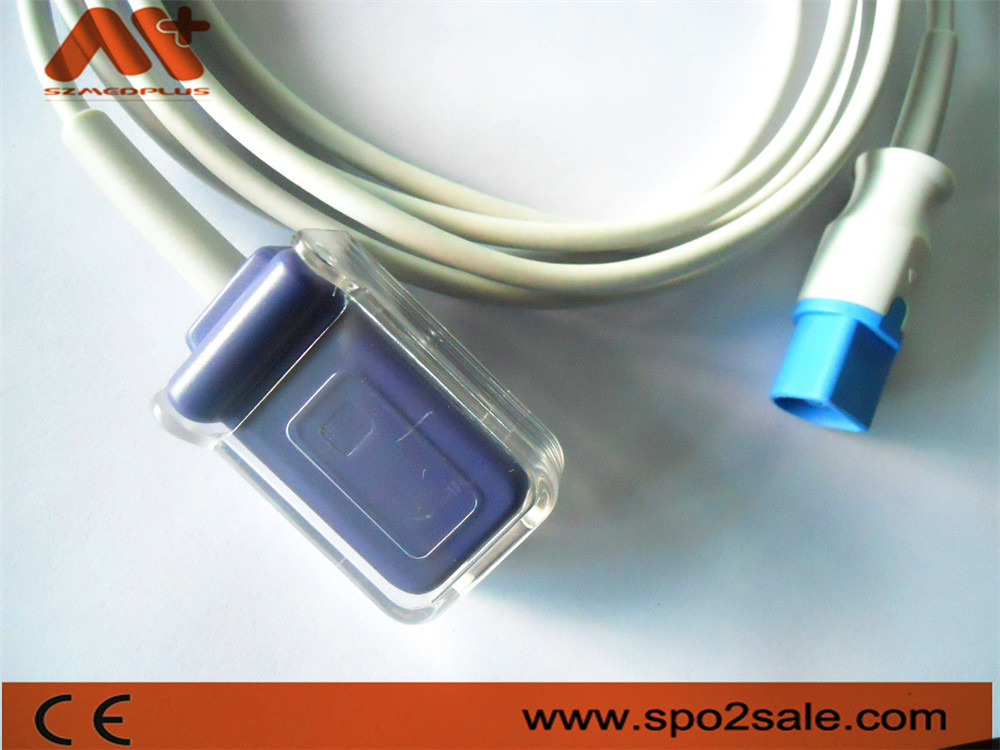

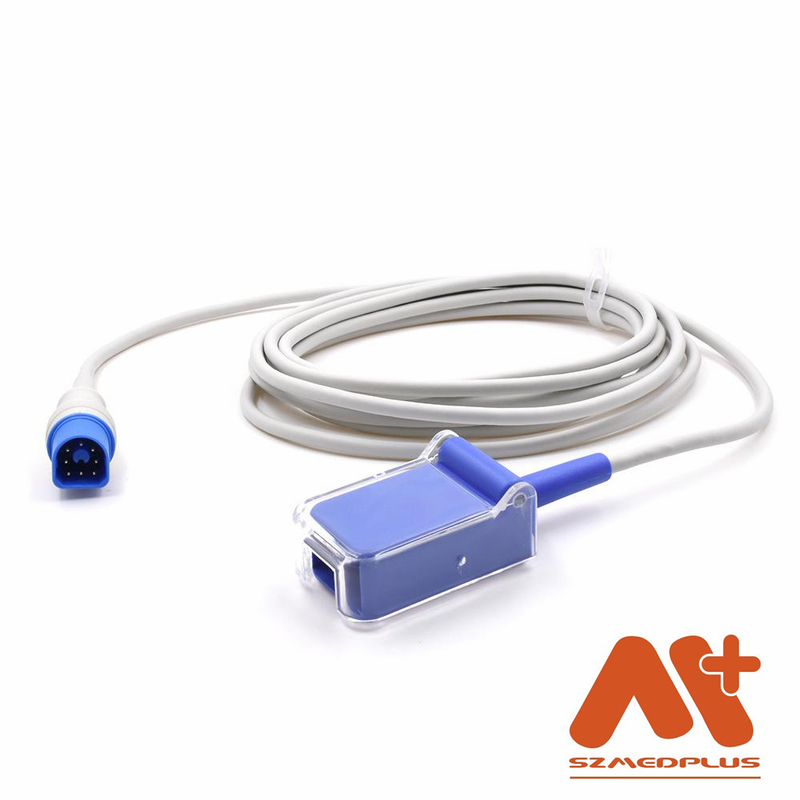

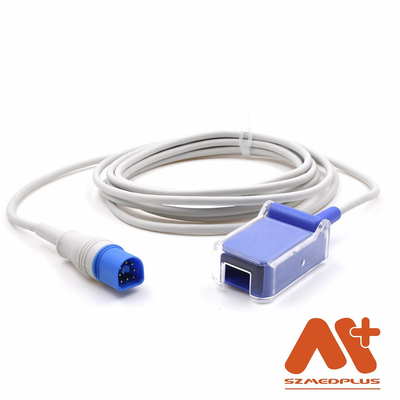

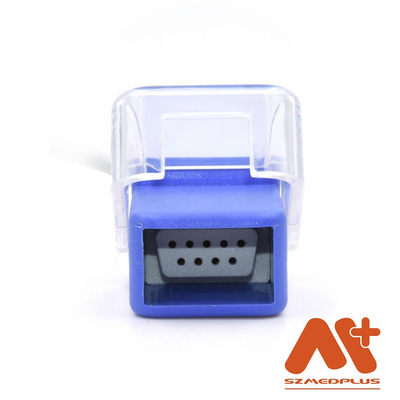

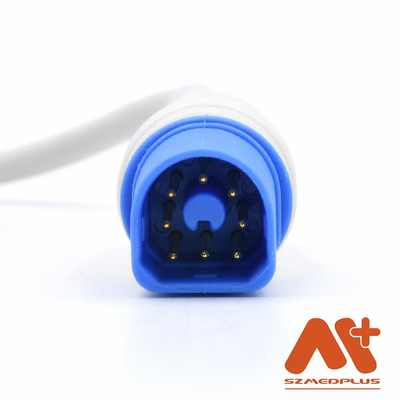

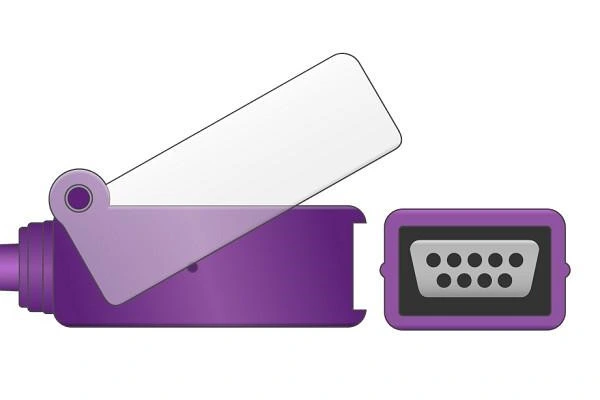

6.Image
