Product Details:
|
| OEM Part: | 3375834 | Material: | Medical TPU |
|---|---|---|---|
| Patient End: | 7pin | Monitor Connector: | DB9 |
| Length: | 2M | Package: | 1 Pc In Bag |
| Warranty: | 6 Month Repair For Free | Application: | Datex Ohmeda Patient Monitor |

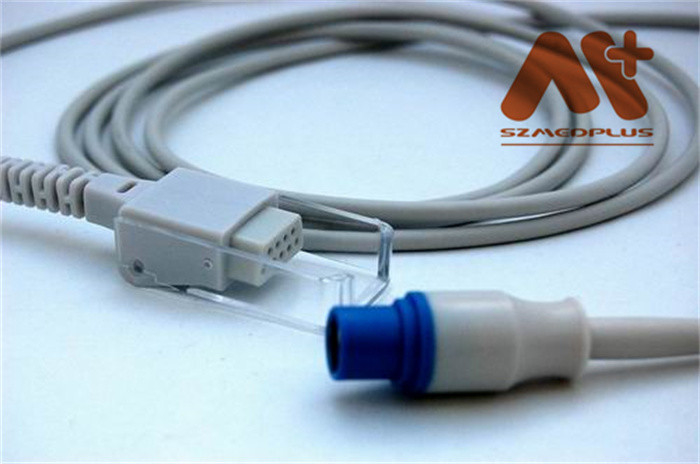

1.Description:Draeger Compatible SpO2 Adapter Cable - 3375834
| P/N | Compatibility | Description | Instrument connector | Sensor side connector |
| MPE024B | Siemens Medical: SC 6002XL , SC6000,SC7000, SC8000, SC9000,SC9000XL |
Drager 7PDB9F, For Nellcor Probe |
 |
 |
2.OEM Part Number Cross References
| Manufacturer | OEM Part # |
|---|---|
| Draeger | 3375834 (6.5 ft (2 Meters)) |
| Sage | E09-22M |
| Tenacore | TE1813 |
3.Compatibility
| Manufacturer | Model |
|---|---|
| Draeger | Infinity Delta, Infinity Gamma, Infinity Kappa, Infinity MultiMed Pod, Infinity Vista, SC 6002XL, SC 7000, SC 8000, SC 9000XL |
4.Specification

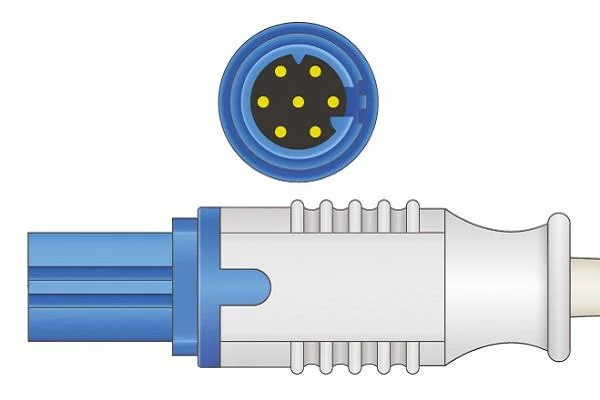

| Connector type | 7 Pin |
| Cable material | medical TPU |
| Cable diameter | 4.0 cable |

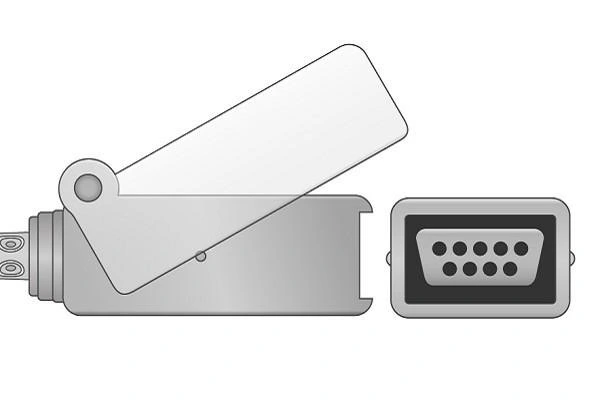

| Patient end | DB9 Female |
| Latex Free | Yes |
| OEM&ODM Service | Yes |
| Cable length | 2.4M |
| Certificate | ISO13485,CE |
| Application | extend Spo2 sensor |
| Package | 1 piece in bag |
Technical Specifications
5.Advantage:
-Mainly used in.: Nellcor SpO2 Probe;
-Monitor Conn.: 7Pin;
-Patient Conn. No.:9pin;
-Length of Probe: 2400MM ± 50MM；
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 6 month, Non-human damage!
6.Image
