Product Details:
|
| OEM Part: | OXY-OL3 | Material: | Medical TPU |
|---|---|---|---|
| Patient End: | Hypertronic 7Pin | Monitor Connector: | Oxytip 8pin |
| Length: | 2.4M | Package: | 1 Pc In Bag |
| Warranty: | 6 Month Repair For Free | Application: | Datex Ohmeda Patient Monitor |

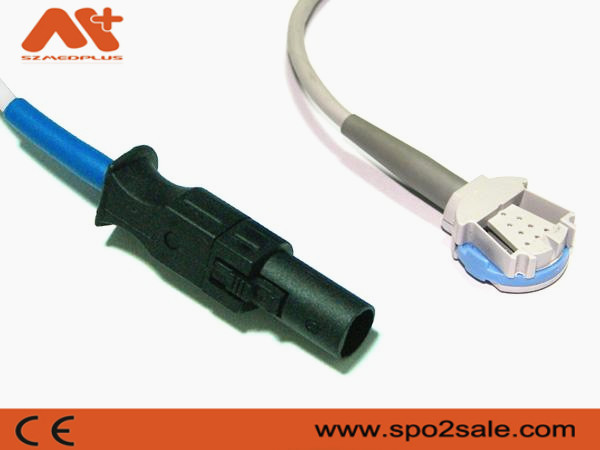

1.Description:Datex Ohmeda Compatible SpO2 Adapter Cable - OXY-OL3
| P/N | Compatibility | Description | Instrument connector | Sensor side connector | |
| MPE007B | TuffSat 3775 , Stand alone Pulse oximeters (37** series , 3800, 3900, 3900P), respiratory gas monitors (4700, 5250 RGM ), M-OSAT module , N-XOSAT option for Cardiocap/5 ,OEM partnering monitors ) . | Hyc7P-8J For Ohmeda Probe |
 |
 |
|
| MPE007A | Hyc7P-DB9F, For Ohmeda Probe |
 |
 |
||
2.OEM Part Number Cross References
| Manufacturer | OEM Part # |
|---|---|
| Datex Ohmeda | OXY-OL1 (3 ft (1 Meter)), OXY-OL3 |
| Sage | E05X-22M |
3.Compatibility
| Manufacturer | Model |
|---|---|
| Datex Ohmeda | 3775, 37xx Series, 3800, 3900, 3900P, 4700, 5250, AS/3 with M-OSAT module, CS/3 with M-OSAT module, Cardiocap/5, S/5 with M-OSAT module, TuffSat |
4.Specification
| Connector type | Hypertronic 10Pin |
| Cable material | medical TPU |
| Cable diameter | 4.0 cable |
| Patient end | oxytip 8Pin |
| Latex Free | Yes |
| OEM&ODM Service | Yes |
| Cable length | 2.4M |
| Certificate | ISO13485,CE |
| Application | extend Spo2 sensor |
| Package | 1 piece in bag |
5.Advantage:
-Mainly used in.: oxytip SpO2 Probe;
-Monitor Conn.: Hypertronic 7Pin;
-Patient Conn. No.:DB9pin;
-Length of Probe: 2400MM ± 50MM；
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 6 month, Non-human damage!

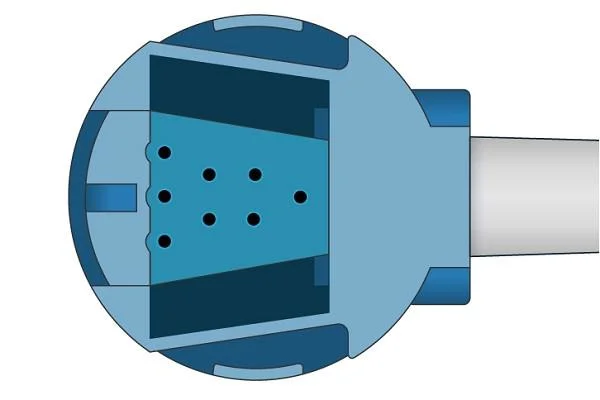

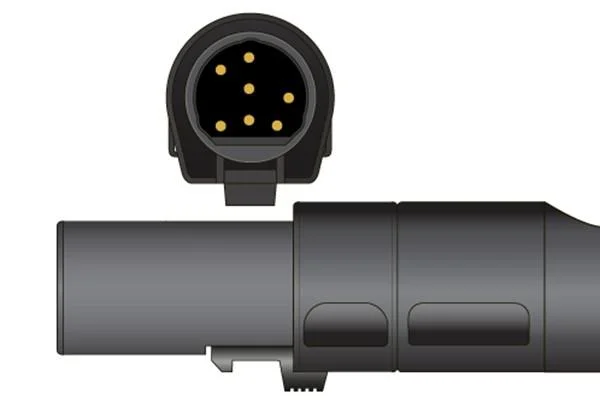

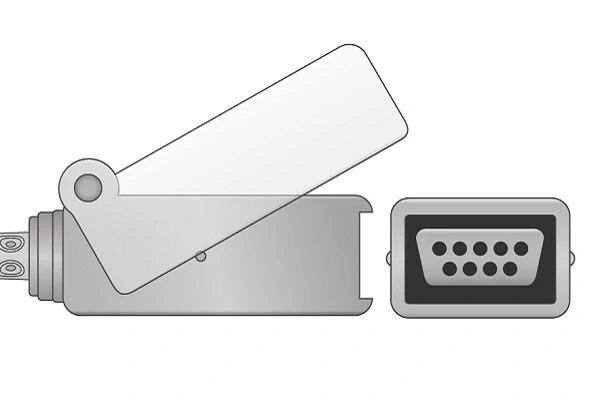

6.Image
