Product Details:
|
| OEM Part: | M1943AL | Material: | Medical TPU |
|---|---|---|---|
| Patient End: | 8Pin | Monitor Connector: | DB9 |
| Length: | 2.4M | Package: | 1 Pc In Bag |
| Warranty: | 6 Month Repair For Free | Application: | Patient Monitor,pulse Oximeter |
| Highlight: | Patient Monitor Spo2 Extension Cable,Spo2 Extension Cable ISO13485,ISO13485 Philips M1943AL |
||

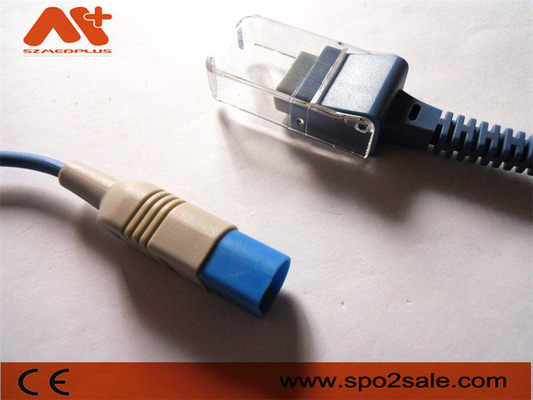

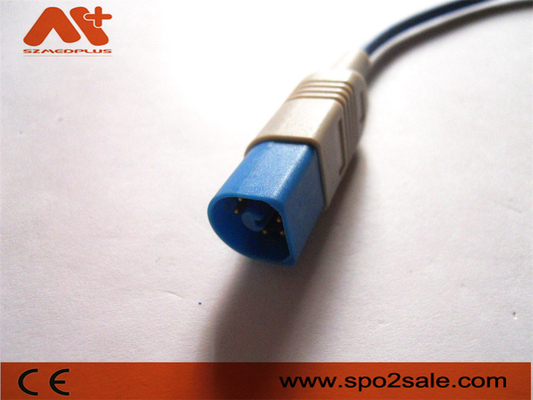

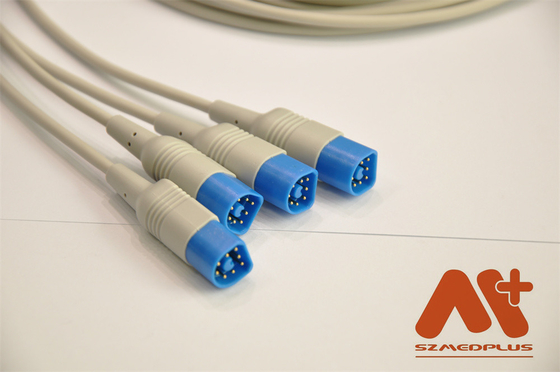

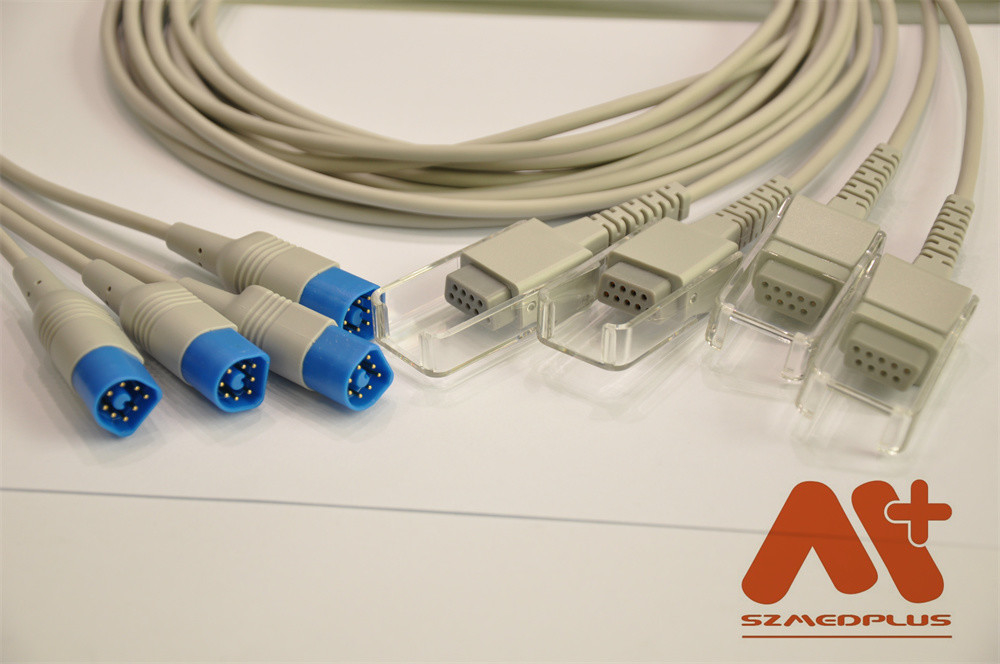

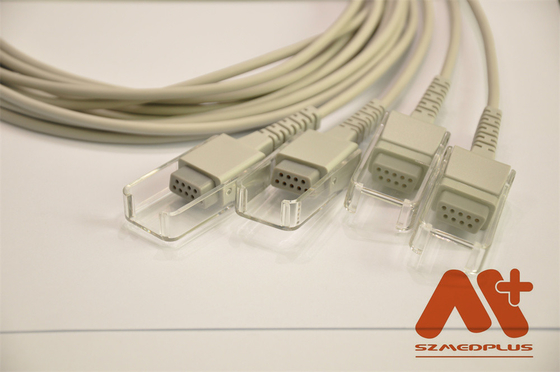

1.Description:Philips Compatible SpO2 Adapter Cable - M1943AL
| P/N | Compatibility | Description | Instrument connector | Sensor side connector |
| MPE021D | HP Viridia ,C1,C3,M3, M4,MP20,MP30, MP40/50/60/70/90. VM4,VM6,VM8 |
HP8P-DB9F, For Nellcor Probe |
 |
|
2.OEM Part Number Cross References
| Manufacturer | OEM Part # |
|---|---|
| AMC | CB-A4001006VN10 |
| Pacific Medical | NXPH2025-10 |
| Philips | M1943AL, 989803128651 |
| Sage | E01-30M |
3.Compatibility
| Manufacturer | Model |
|---|---|
| Philips | FM20, FM30, FM40, FM50, Heartstream XL, IntelliVue FAST-SpO2, IntelliVue MP70, IntelliVue MX40, IntelliVue MX400, IntelliVue MX450, IntelliVue MX500, IntelliVue MX550, IntelliVue MX600, IntelliVue MX700, IntelliVue MX800, M1020B, M2601A, M2705A, M3000A, M3001A, M3001A A01, M3001A A01C06, M3001A A01C12, M3001A A01C18, M3002A MMS X2, M3500B, M4735A, M8102A MP2, M8105A MP5, MP 30, MP 50, SureSigns VM1, SureSigns VM6, SureSigns VS2, SureSigns VS3, SureSigns VS4, VM4, VM6 |
4.Specification

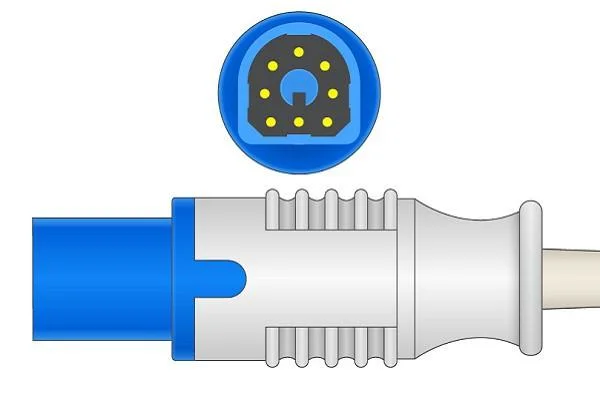

| Connector type | 8/Pin |
| Cable material | medical TPU |
| Cable diameter | 4.0 cable |

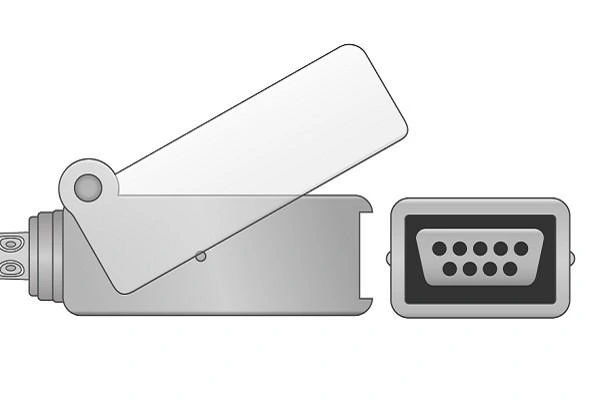

| Patient end | DB9 Female |
| Latex Free | Yes |
| OEM&ODM Service | Yes |
| Cable length | 2.4M |
| Certificate | ISO13485,CE |
| Application | extend Spo2 sensor |
| Package | 1 piece in bag |
5.Advantage:
-Mainly used in.: Nellcor SpO2 Probe;
-Monitor Conn.: DB9Pin;
-Patient Conn. No.:DB9pin;
-Length of Probe: 2400MM ± 50MM；
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 6 month, Non-human damage!
6.Image
