Product Details:
|
| OEM PN: | PC-104 | Machine Connector: | 16Pin |
|---|---|---|---|
| Patient End: | Banana 4.0 | Diameter Of Cable: | 6.0+3.0 Cable |
| Use For: | ELI 100, ELI 200, ELI 50, Landscape, Portrait, XScribe DOS | Application: | Patient Monitor,Electrocardiograh |
| High Light: | Kenz PC-104 EKG Cable,Kenz PC-104 16 Pin Cable,EKG Cable For Kanz 103 |
||
1.Description: Kenz PC-104 Compatible Direct-Connect EKG Cable for Kanz 103, 106, 107, 1201, 302, 303
| P/N | Description | Connector Imagine |
| MPK003A | IEC Din3.0 No resistance |  |
| MPK003B | AHA Din3.0 No resistance | |
| MPK003C | IEC Banana No resistance | |
| MPK003D | AHA Banana No resistance | |
| MPK003E | IEC Snap No resistance | |
| MPK003F | AHA Snap No resistance | |
| MPK003G | IEC Clip No resistance | |
| MPK003H | AHA Clip No resistance |
2.OEM Part No
| Manufacturer | OEM Part # |
|---|---|
| Kenz | PC-104, 63050074, 63050075, 895.0586 |
3.Compatibility
| Manufacturer | Model |
|---|---|
| Cardioline | Delta 1, Delta 1 Plus, Delta 3, Delta 3 Plus, Delta 30, Delta 30D, Delta 60, Delta 60 Plus, ECG 106 |
| Kenz | 103, 106, 107, 1201, 302, 303 |
4.Specification

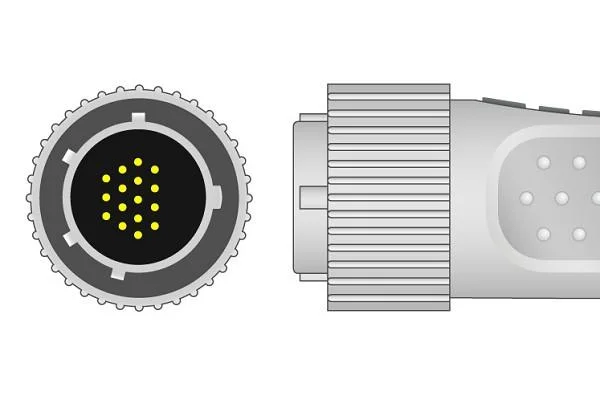

| Connector | 16 Pin |
| Cable material | medical TPU |
| Cable diameter | 6.0mm+3.0 mm |
| Patient end | Snap,clip,banana 4.0,Din 3.0 |
| Latex Free | Yes |
| Number of Leadwires | 10 lead |
| Standard | IEC,AHA |
| Certificate | ISO13485,CE |
| Package | 1 pc in bag |
| Warranty | 6 month for free |
Technical
| Trunk cable length | 220cm |
| Patient leadwires | L:120CM |
| S: 80CM | |
| Patient end termination | IEC: clip, snap. Din3.0, Banana4.0 |
| AHA: clip. snap, Din3.0, Banana4.0 | |
| Resistor | No resistance |
| Operating Temperature | 5°C~40°C |
| Humidity |
≤80% |
5.Advantage:
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 12 month, Non-human damage!

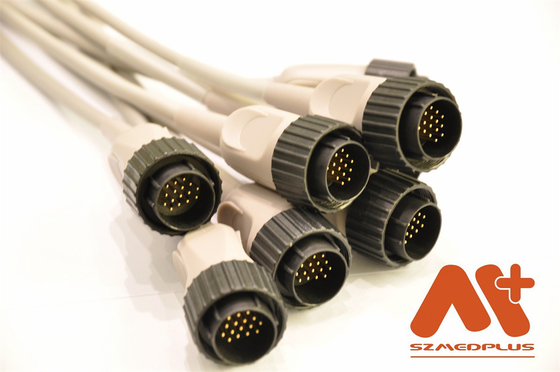

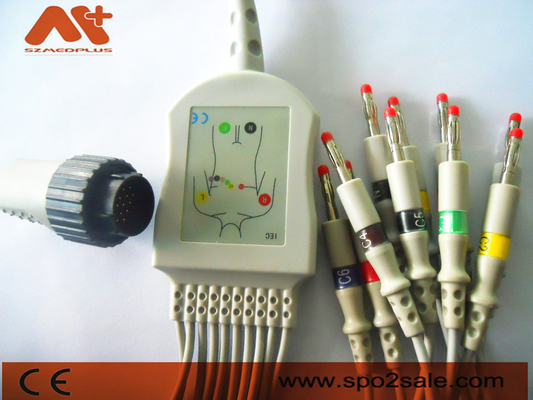

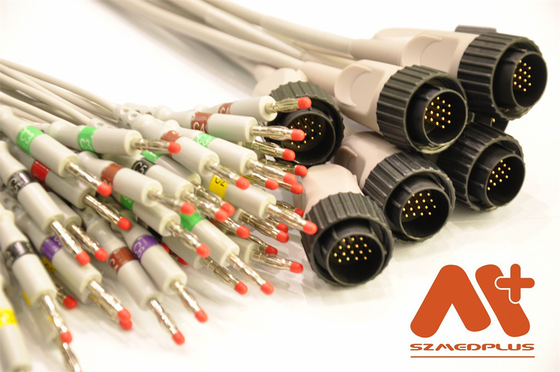

6.Image
Warranty:
1) there is any quality problem within 7 days, we will send you the replacement
2) we will repair it free within one year.
The advantages of our products:
1) Attractive design, high quality and reasonable prices
2) Advanced processing technology
3) high quality raw material
Delivery details:
1) Our production cycle:
Item will be shipped within 4-7 working days after we get your Payment, We are always serious on the delivery time, all orders will be checked by us carefully to make sure there is no delay on the shipment.
2) Shipping Methods:
a).we usually send goods by DHL,Fedex,TNT,UPS, Tracking number will be advised after delivery, all of express lead time is about 5-7 working days.
b). If order is big, we will suggest you use Air Freight or Sea freight.
About Sample
1) if we have the product you need , we can send you the sample free
2) if we have not the product you need, we advice you send us one piece of sample,
We will check how to produce it for you .
Provide OEM&ODM service
1) if you have new design or idea, we can support you .
2) If you have the sample, we can analyze how to produce it for you .
3) If you have the drawing , we can produce the product according to your drawings
4)we can print your logo to our current design goods
Our leading products list :
1)Resusable SpO2 Sensor and Disposable SpO2 Sensor
2) SpO2 Extension Cable and spo2 adapter cable
3) ECG Cable ,EKG cable , Holter Cable and disposable ECG cable
4) ECG/EKG Electrode
5 IBP Cable and IBP transducer
6) Resusable Temperature Probe and disposable Temperature Probe
7) NIBP Cuff and NIBP hose(NIBP tube)
8) Fetal transducer
9) EEG Cable and EEG hat (EEG cap)
10) Ultrasound probe, compatible ultrasound probe
11)Etco2 sensor&Accessory
12) Medical Connector,Spare parets of patient cable
