Product Details:
|
| Part No: | 650-100 | Material: | ABS |
|---|---|---|---|
| Feature: | Reusable | Patient Type: | Edwards |
| Application: | Patient Monitor | Key Words: | Patient Monitor Cable, Invasive Blood Pressure Cable |
| High Light: | CE ABS Edwards IBP Transducer,CFS Edwards IBP Transducer,Transducer Invasive Blood Pressure 650-100 |
||

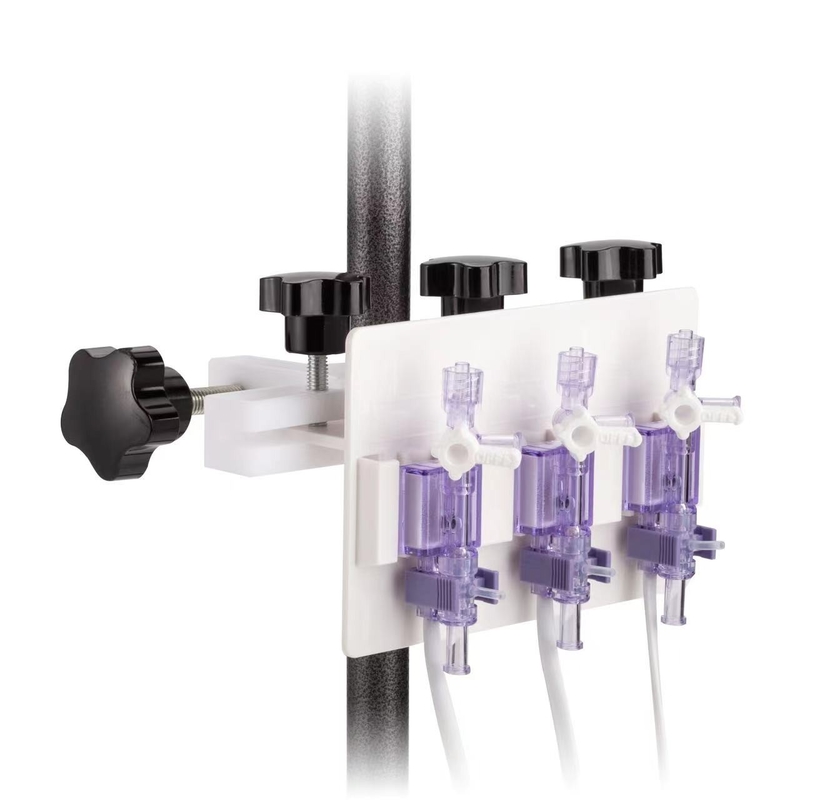

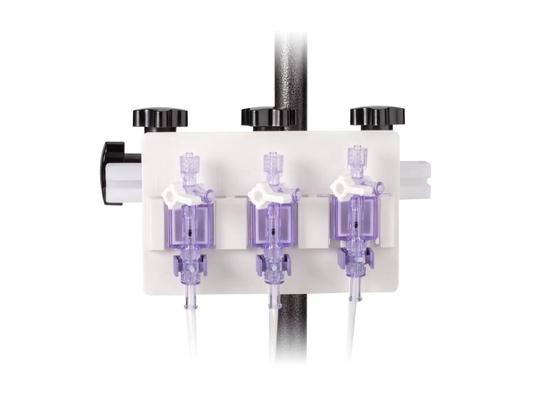

1.Description:szmedplus China factory of Edwards IVpole clamp and holder plate for three IBP Transducer(IBP accessories)
2..Compatibility:
All brands
3.Specification
| Sterilization | No |
| Material | ABS |
| Connector type | Edwards |
| Need ext cable | Yes |
| Latex Free | Yes |
| OEM&ODM | Yes |
| used for | Adult/Pediatric/Neonate |
| Certificate | ISO13485,CE |
| Package | 1 pc in Box |
| Warranty | 6 month for free |
|
Main technical parameters and working environment requirements:
|
||||
|
Disposable Pressure Transducer
|
||||
|
Barometric pressure
|
70~106Kpa
|
|||
|
Relative humidity
|
10~90% (non-condensing)
|
|||
|
Operating pressure range
|
-50 ~ + 300 mmHg
|
|||
|
Sensitivity
|
5.0μV/V/mmHg ±3%
|
|||
|
Nonlinearity and hysteresis
|
full-scale reading±1.5%
|
|||
|
Input impedance
|
1200Ω ~3200Ω
|
|||
|
Zero pressure offset
|
-20mmHg~+20mmHg
|
|||
|
Thermal offset shift
|
≤±0.3mmHg/°C
|
|||
|
Offset drift
|
After warm-up for 20 seconds, drift within 2 mmHg within 8 hours
|
|||
|
Thermal span shift
|
≤±0.1%/°C
|
|||
|
Frequency response
|
Standard pressure set (48 "/ 12") is 40 Hz; Separate sensor > 200 Hz
|
|||
|
Defibrillator withstand
|
Defibrillation depends on the final connection of the equipment.
|
|||
|
Leakage current
|
Leakage current is dependent on the final connection of the equipment
|
|||
|
Overpressure load
|
-400~+4000mmHg
|
|||
|
Shock resistance
|
Withstand falling from one meter for three times
|
|||
|
|
When exposed to a 3400°K tungsten light, candle light at 3000 feet, it's less than 1 mmHg under rated voltage.
|
|||
|
Storage and transport environment requirements
|
- 20 ° C~ + 60 ° C, < 90%(non-condensing), no corrosive gas and indoor ventilation, and to avoid high temperature and cold.
|
|||
|
Contact with the human body
|
≤168h
|
|||
|
Intra-system velocity
|
||||
|
Flow
|
2-5mL/h
|
|||
|
Intra-system refers to the velocity under 6.00 VDC and 25°C, unless there are additional instructions.
|
||||
|
Product shelf-life
|
3 years
|
|||
5.Image
Warranty:
1) there is any quality problem within 7 days, we will send you the replacement
2) we will repair it free within one year.
The advantages of our products:
1) Attractive design, high quality and reasonable prices
2) Advanced processing technology
3) high quality raw material
Delivery details:
1) Our production cycle:
Item will be shipped within 4-7 working days after we get your Payment, We are always serious on the delivery time, all orders will be checked by us carefully to make sure there is no delay on the shipment.
2) Shipping Methods:
a).we usually send goods by DHL,Fedex,TNT,UPS, Tracking number will be advised after delivery, all of express lead time is about 5-7 working days.
b). If order is big, we will suggest you use Air Freight or Sea freight.
About Sample
1) if we have the product you need , we can send you the sample free
2) if we have not the product you need, we advice you send us one piece of sample,
We will check how to produce it for you .
Provide OEM&ODM service
1) if you have new design or idea, we can support you .
2) If you have the sample, we can analyze how to produce it for you .
3) If you have the drawing , we can produce the product according to your drawings
4)we can print your logo to our current design goods
Our leading products list :
1)Resusable SpO2 Sensor and Disposable SpO2 Sensor
2) SpO2 Extension Cable and spo2 adapter cable
3) ECG Cable ,EKG cable , Holter Cable and disposable ECG cable
4) ECG/EKG Electrode

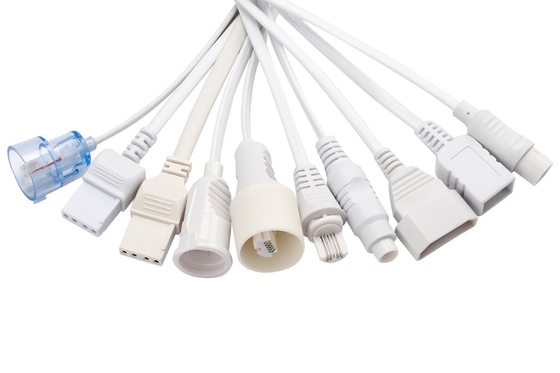

5 IBP Cable and IBP transducer
6) Resusable Temperature Probe and disposable Temperature Probe
7) NIBP Cuff and NIBP hose(NIBP tube)
8) Fetal transducer
9) EEG Cable and EEG hat (EEG cap)
10) Ultrasound probe, compatible ultrasound probe
11)Etco2 sensor&Accessory
12) Medical Connector,Spare parets of patient cable
