Product Details:
|
| OEM Part: | M1190A | Patient End: | Adult Soft Tip |
|---|---|---|---|
| Connector: | HP 12Pin | Length: | 10ft |
| Application: | Philips 12Pin Patient Monitor | Sensor Type: | 660/905-2 |
| Highlight: | Soft Tip Reusable Pulse Oximeter Sensor,Reusable Pulse Oximeter Sensor Adult,Adult Philips M1190A |
||
1.Description: Philips Compatible Adult Soft Tip Direct-Connect SpO2 Sensor - M1190A
2.OEM Part Number Cross References
| Manufacturer | OEM Part # |
|---|---|
| AMC | PR-A900-1006 |
| Envitec | R-2412, R-2412plus (Autoclavable) |
| Philips | M1190A |
| Sage | P08-30M |
3.Compatibility
| Manufacturer | Model |
|---|---|
| Philips | 78352A, 78352C, 78354A, 78354C, 78834C, Agilent 50XM Fetal Monitor, Codemaster, HeartStart XL, M1020A, M1025A, M1025B, M1092A, M1094B, M1204A, M1205A, M1350B, M1722A, M1722B, M1723A, M1723B, M1732A, M1732B, M2475B, M3046A M4, V24E |
4.Specification
| Connector type | 12Pin |
| Cable material | medical TPU |
| Cable diameter | 4.0 |
| Patient end | Adult Soft Tip |
| Latex Free | Yes |
| Sensor type | 660/902 |
| Cable length | 10ft |
| Certificate | ISO13485,CE |
| Application | Spo2 |
| Patient size | Adult |
| Emitting light wavelength | 660/905-2 | |
| Cable Material | TPU jacket, 4.0mm diameter | |
| Sensor Type | Adult | |
| Spo2 testing range | 70%-100% | |
| Storage and transport environment | -10°C~+40°C | |
| Operating temperature | 5°C-40°C | |
| Humidity | 0-80% | |
| Pressure | 86kpa-106kpa | |
| Accuracy | Spo2 | ±2%(90%-100%) |
| ±3%(70%-89%) | ||
| unspecified(0-69%) | ||
| Pulse rate | ±1 bpm(30-59bpm) | |
| ±2 bpm(60-149bmp) | ||
| ±3 bpm(150-245bmp) | ||

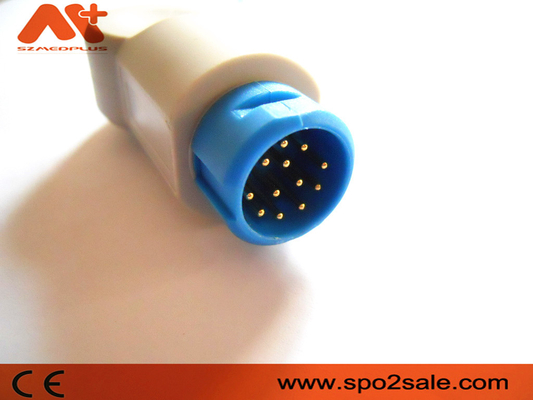

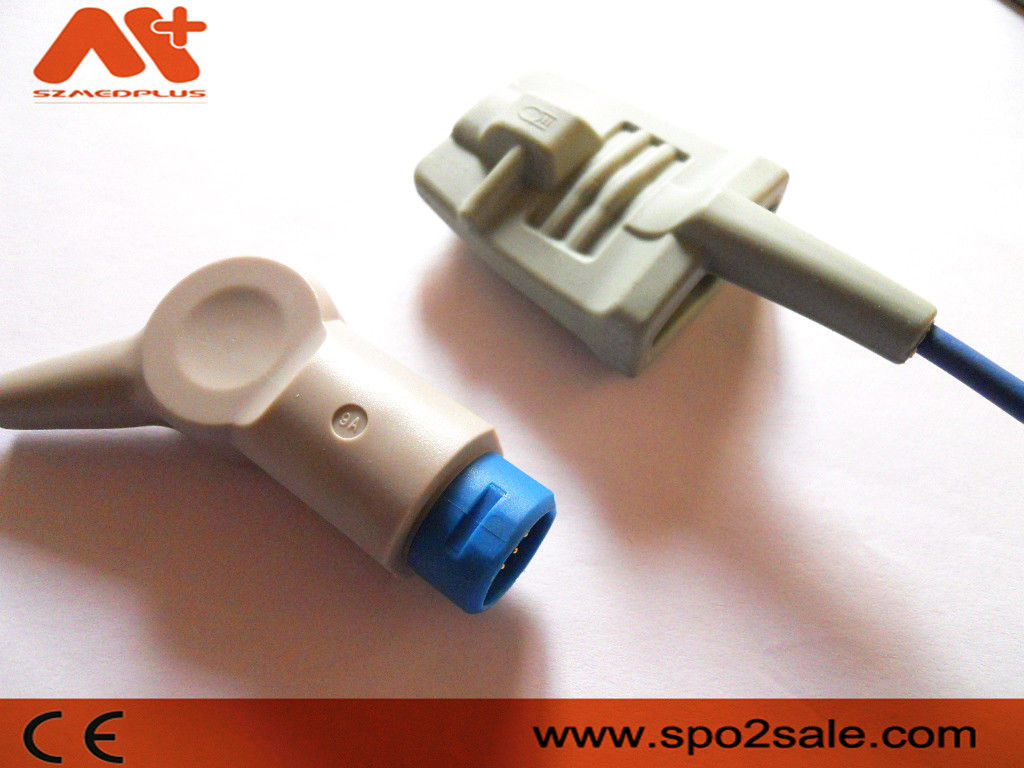

5.Image
