Product Details:
|
| OEM Part: | 2056 | Material: | Medical TPU |
|---|---|---|---|
| Patient End: | DB9 | Monitor Connector: | 20Pin |
| Length: | 2.4M | Package: | 1 Pc In Bag |
| Warranty: | 6 Month Repair For Free | Application: | Szmedplus Radical 20Pin Patient Monitor |
| High Light: | 2056 szmedplus Sensors And Cables,szmedplus Sensors And Cables For Patient Monitor,szmedplus 2056 For Patient Monitor |
||

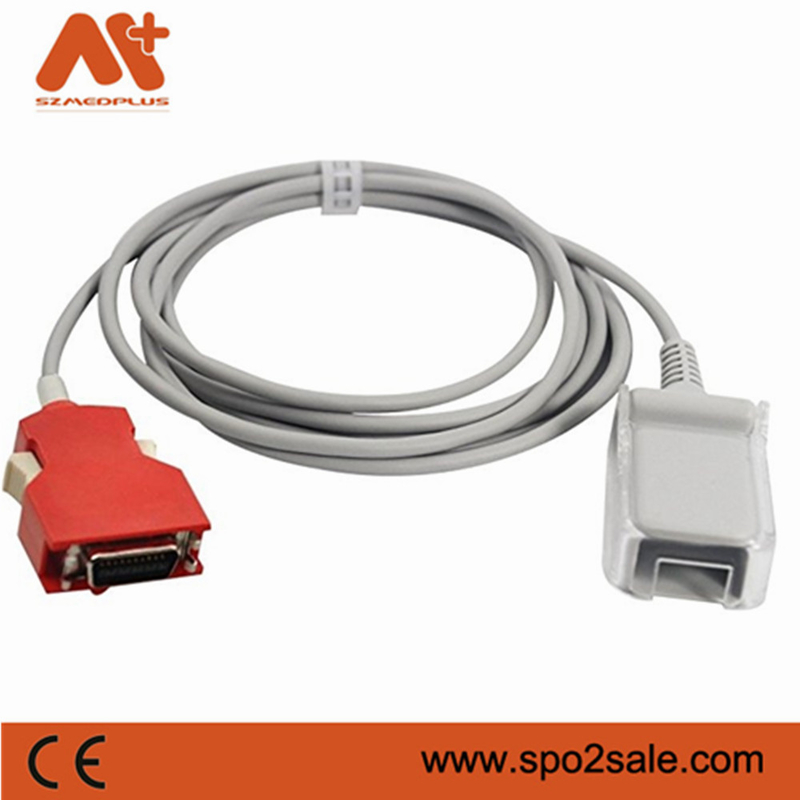

1.Description: szmedplus Compatible SpO2 Adapter Cable - 2056
2.OEM Part Number Cross References
| Manufacturer | OEM Part # |
|---|---|
| szmedplus | 2056 (Red LNC-10) |
| Stryker > MEDTRONI > Physio Control | 11996-000324 |
| Zoll | 8000-0331 |
3.Compatibility
| Manufacturer | Model |
|---|---|
| szmedplus | Pronto-7, Rad-5, Rad-57, Rad-5v, Rad-8, Rad-87, Radical-7 |
| Stryker > MEDTRONI > Physio Control | Lifepak 15 |
| Welch Allyn | 65MTPX, 73MT-B, 74ME-B, 74MX-B, 75 MT-B Connex Spot, 75ME-B, Connex 6000 series |
| Zoll | X Series |
4.Specification
| Connector type | 20 Pin |
| Cable material | medical TPU |
| Cable diameter | 4.0 cable |
| Patient end | DB9 Connector |
| Latex Free | Yes |
| OEM&ODM Service | Yes |
| Cable length | 2.4M |
| Certificate | ISO13485,CE |
| Application | extend Spo2 sensor |
| Package | 1 piece in bag |
5.Advantage:
-Mainly used in.: szmedplus DB9 SpO2 Probe;
-Monitor Conn.: 20Pin;
-Patient Conn. No.:9pin;
-Length of Probe: 2400MM ± 50MM；
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 6 month, Non-human damage!
6.Image
