Product Details:
|
| OEM Part: | 0012-00-1514-03 | Patient Connector: | Twin Pin Connector |
|---|---|---|---|
| Patient End: | Clip | Length: | 3ft |
| Lead: | 5 Lead | Application: | Passport V, V-Series, V12, V21 Patient Monitor |
| High Light: | Datascope 5 Lead Clip ECG Leadwire,ECG Leadwire 0012-00-1514-03,5 Lead Clip ECG Patient Cable |
||

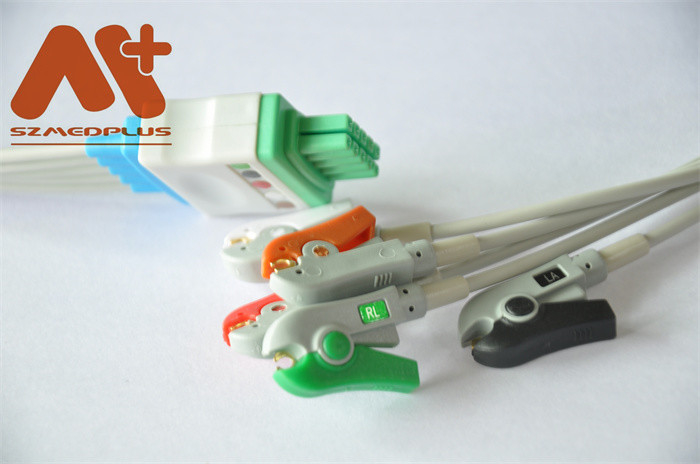

1.Description: Mindray > Datascope Compatible 5 lead clip ECG Leadwire - 0012-00-1514-03
2.OEM Part Number Cross References
| Manufacturer | OEM Part # |
|---|---|
| AMC | LW-3910S29/5A ((29" length)) |
| Mindray > Datascope | 0012-00-1514-01 ((18" length)), 0012-00-1514-02 ((24" length)), 0012-00-1514-03 ((36" length)) |
| Sage | LDT5-90P0, L048-05-29P |
3.Compatibility
| Manufacturer | Model |
|---|---|
| Mindray > Datascope | BeneVision N1, DPM6, DPM7, EPM4, Panorama, Panorama Telepack 608, Passport 12, Passport 12m, Passport 17m, Passport 2, Passport 8, Passport V, Spectrum, Spectrum OR, T1, V-Series, V12, V21, cPM 12, cPM 8, ePM 10A, ePM 10M, ePM 12M |
4.Specification
| Patient Connector | Twin Pin |
| Cable material | medical TPU |
| Cable diameter | 2.6 mm |
| Patient end | Clip |
| Latex Free | Yes |
| Number of Leadwires | 5 lead |
| Standard | AHA |
| Certificate | ISO13485,CE |
| Package | 1 pc in bag |
| Warranty | 6 month for free |
5.Advantage:
-Patient Conn.: Twin Pinstyple;
-Patient Conn.: Clip-Style;
-Specification of lead wires: 5 leads;
-Length of Probe: 1000MM ± 50MM；
-Color Standard of lead wires: AAMI-American color standard;
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 6 month, Non-human damage!
6.Image
