Product Details:
|
| OEM Part: | M1941A | Material: | Medical TPU |
|---|---|---|---|
| Patient End: | 8Pin | Monitor Connector: | Female 8Pin |
| Length: | 2.4M | Package: | 1 Pc In Bag |
| Warranty: | 6 Month Repair For Free | Application: | Philips 8pin Patient Monitor |
1.Description:Philips Compatible SpO2 Adapter Cable - M1941A
| P/N | Description | Instrument connector | Sensor side connector |
| MPE021C | HP8P-HP8P, For Philips Probe |
 |
|
2.OEM Part Number Cross References
| Manufacturer | OEM Part # |
|---|---|
| AMC | CB-A400-1006VM |
| Beta Biomed | B400-0601 |
| Pacific Medical | NXPH900 |
| Philips | M1941A, M1941B, 989803105681, M11941A |
| Sage | E01-P22M |
3.Compatibility
| Manufacturer | Model |
|---|---|
| Philips | FM20, FM30, IntelliVue MX40, M2601A, M3000A, M3001A, M3001A A01, M3001A A01C06, M3001A A01C12, M3001A A01C18, M3500 B, M4735A, MRx, SureSigns VM1, SureSigns VM6, SureSigns VM8, SureSigns VS2, SureSigns VS3, VM4, VM6, VM8 |
4.Specification
| Connector type | 8Pin |
| Cable material | medical TPU |
| Cable diameter | 4.0 cable |
| Patient end | 8 Pin |
| Latex Free | Yes |
| OEM&ODM Service | Yes |
| Cable length | 2.4M |
| Certificate | ISO13485,CE |
| Application | extend Spo2 sensor |
| Package | 1 piece in bag |
5.Advantage:
-Mainly used in.: Philips 8Pin SpO2 Probe;
-Monitor Conn.: 8Pin;
-Patient Conn. No.:8pin;
-Length of Probe: 2400MM ± 50MM；
-Material of Cable: TPU safety cable;
-Advantage of Cable: High quality alloy conductors with KEVLAR® reinforcement fibers for durability;
-Advantage of Pin: Gold-plated terminals(pin), for strengthen the signals’s conductivity without interference.
-Design to prevent the lid off, Effective protection of cables to connect;
-Certificate of Product: CE authentication;
-Guarantee of Product: Providing the quality assurance for 6 month, Non-human damage!

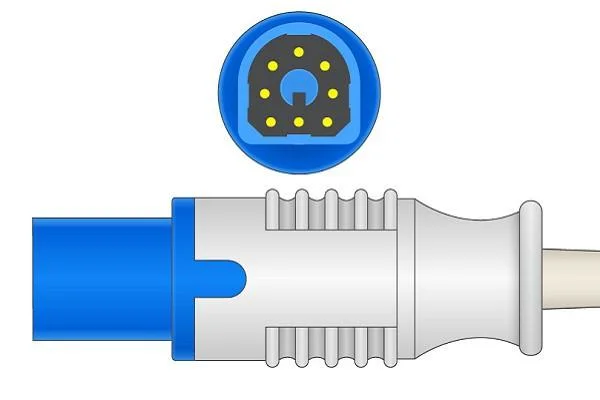

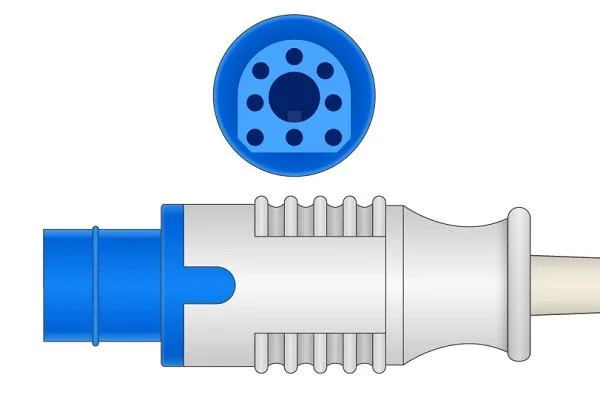

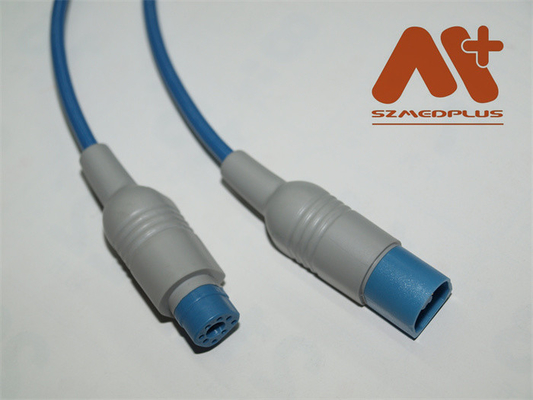

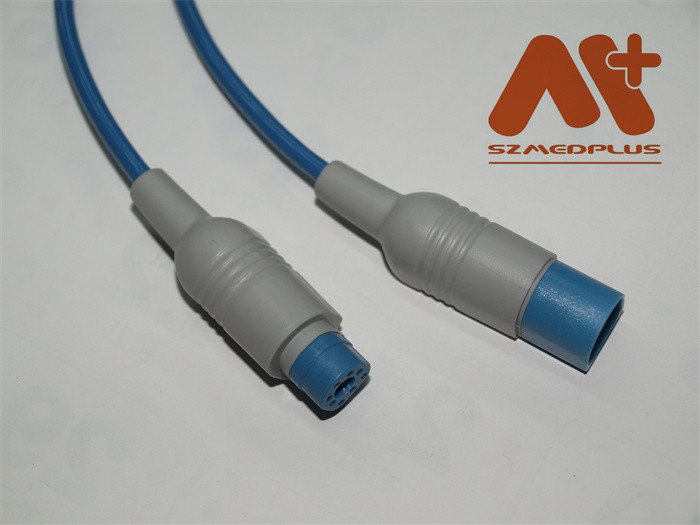

6.Image
